Models  /  G35
Propane

G35

Steps up to 8,000 lbs on propane with Kubota power and DuPont automotive paint — the heavy-duty LP option for operations that need more muscle.

8,000 lbs Capacity
118" Lift Height
Kubota Engine
Find a Dealer
G35 Patriot G35 Propane Forklift
Ideal For

Where the G35 Goes to Work

Heavy Distribution
8,000 lbs handles oversized pallets and crating.
Building Supply
Kubota torque for lumber and sheet goods.
Fleet Operations
Propane refills faster than battery charges.
Manufacturing Plants
Clean-burning LP for ventilated plant floors.
Specifications

G35 at a Glance

Full spec sheet available for download below.
8,000 lbs
Rated Capacity
118"
Max Lift Height
Kubota
Engine — 58.3 Hp, 4-Cyl
Propane
Fuel — 15.85 Gal
9,923 lbs
Service Weight
12.4 mph
Max Travel Speed
97"
Turning Radius
20%
Gradeability

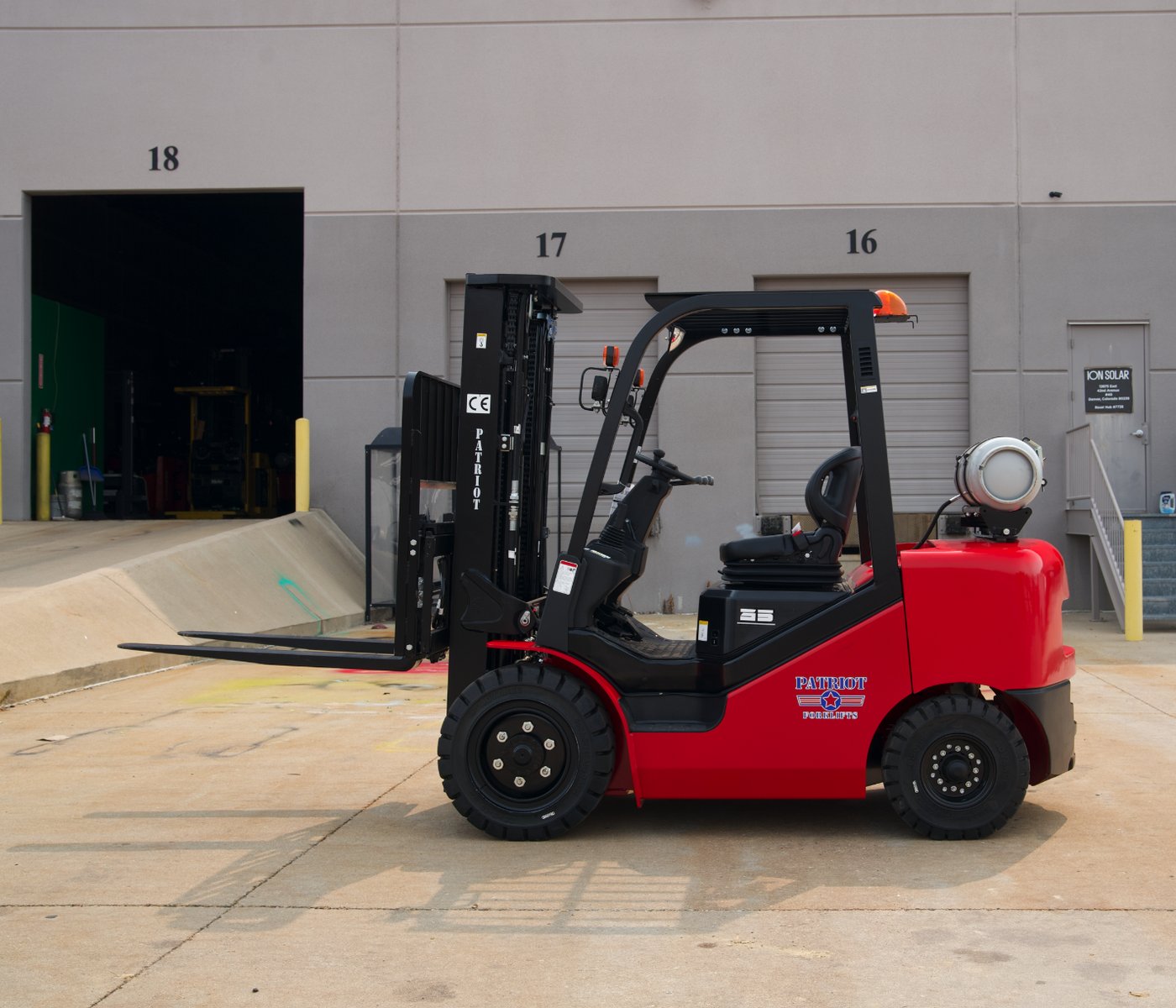

Patriot G35 — gallery image 1

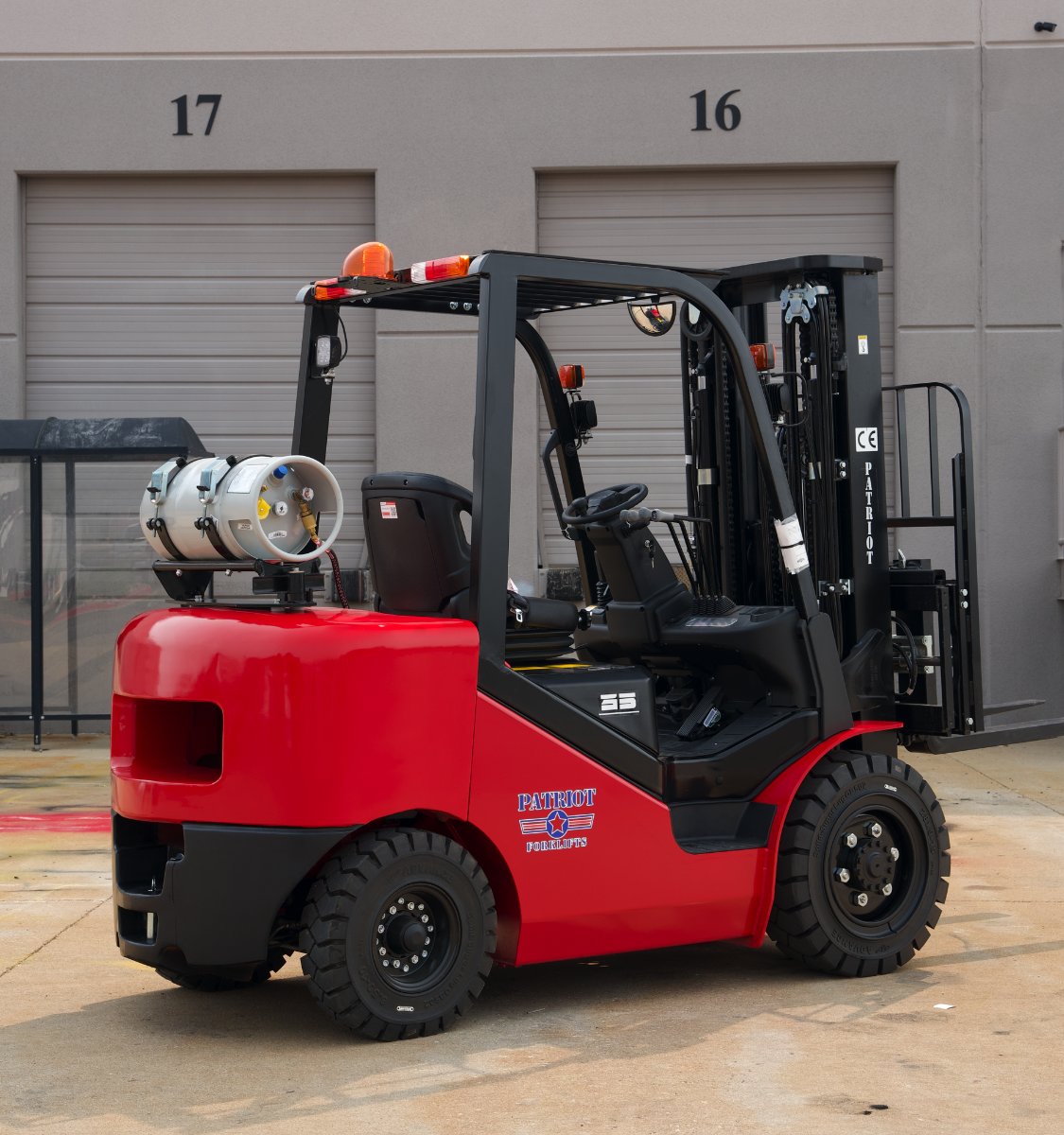

Patriot G35 — gallery image 2

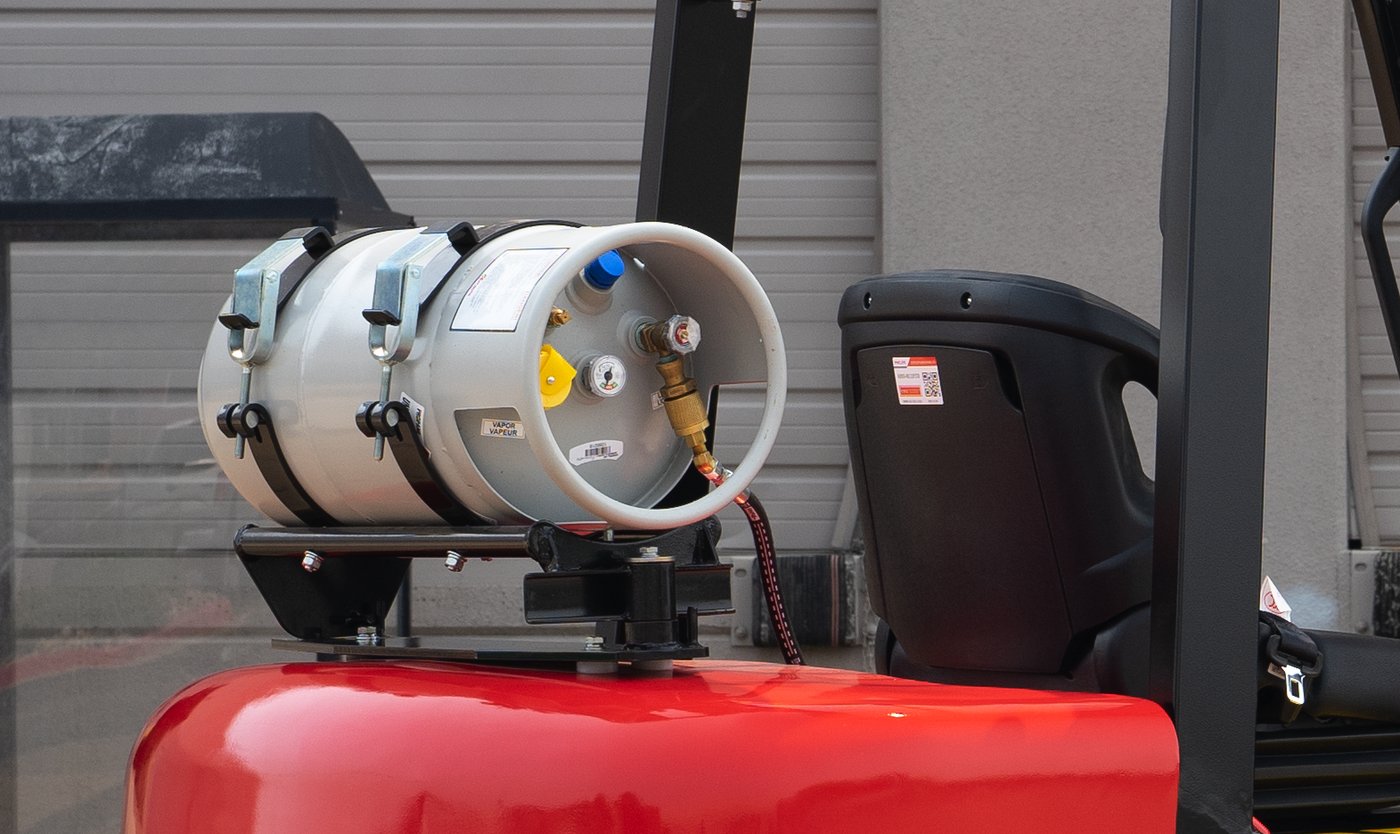

Patriot G35 — gallery image 3

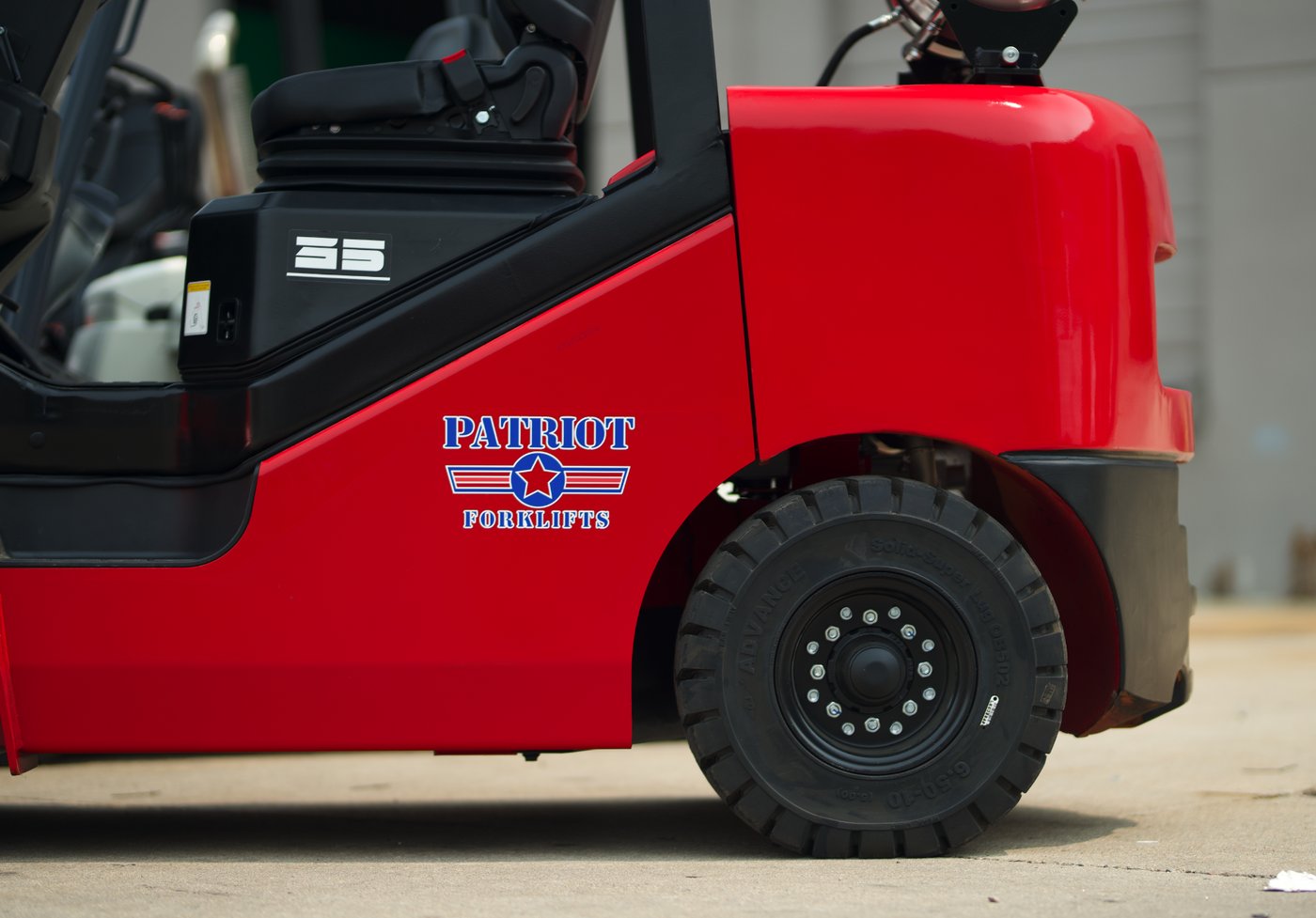

Patriot G35 — gallery image 4

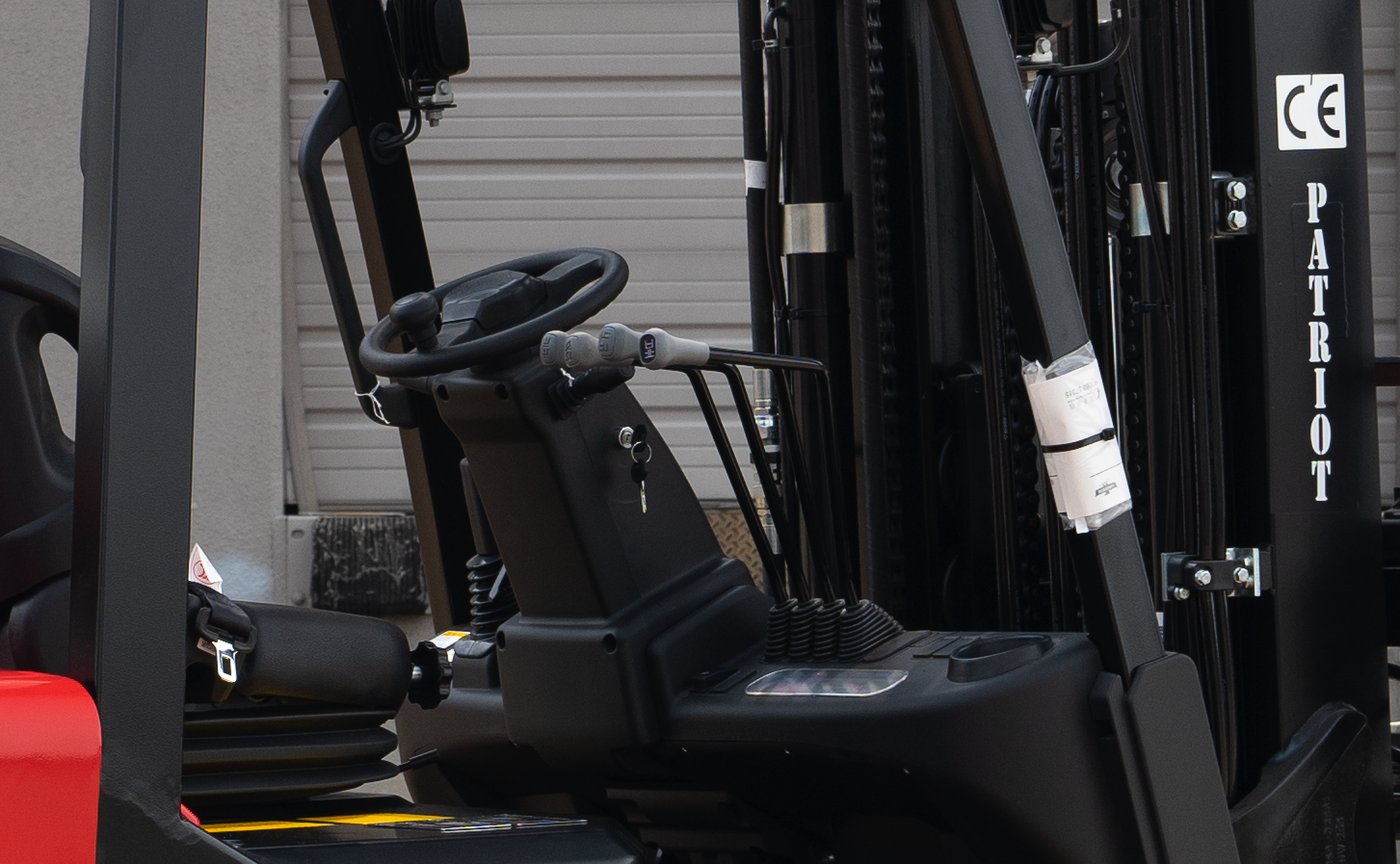

Patriot G35 — gallery image 5

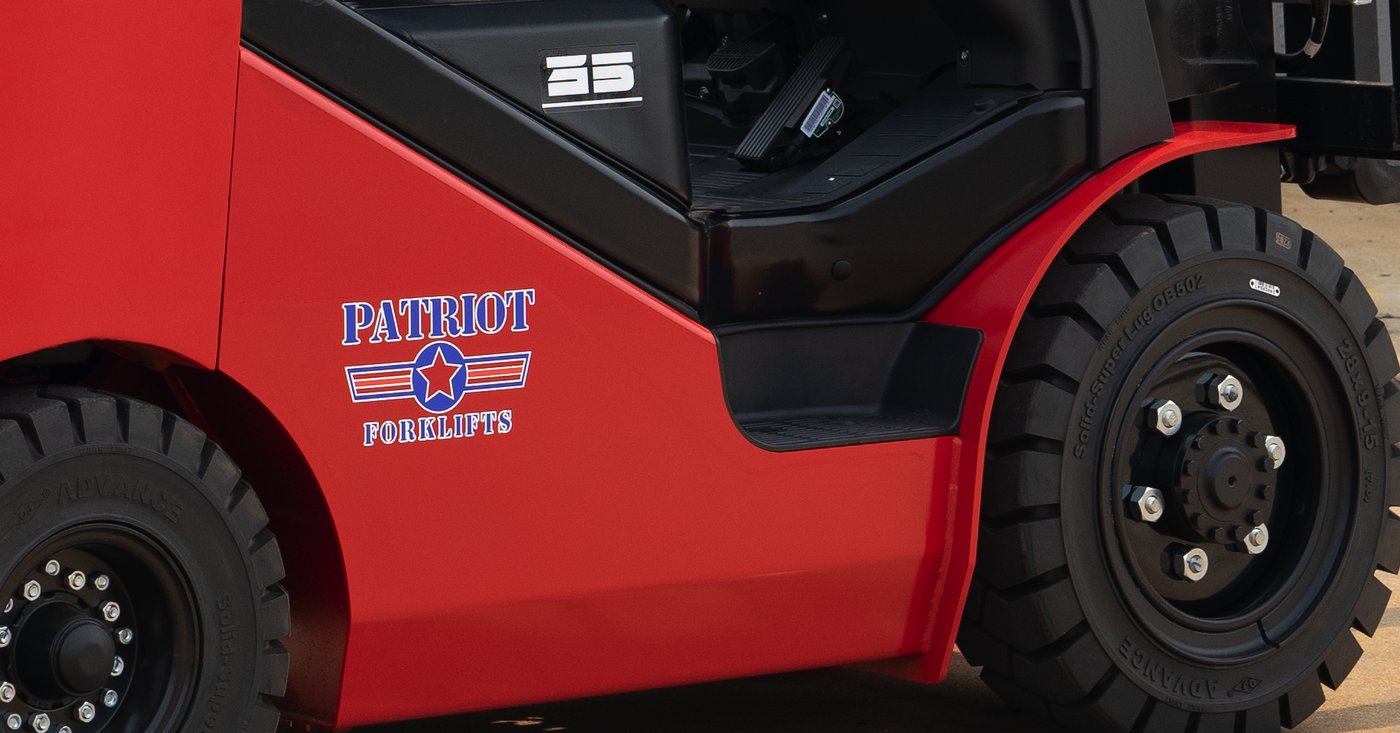

Patriot G35 — gallery image 6
Standard Upgraded Components
Blue LED Safety Light
LED Safety Light
Blue spot warning light alerts pedestrians to forklift approach in busy work zones.
Suspension Seat
Suspension Seat
Premium integrated suspension seat reduces operator fatigue during extended shifts.
Emergency Brakes
Emergency Brakes
Heavy-duty emergency braking system for reliable stopping power in any condition.
Resources
G35 Downloads
Download Catalog (PDF)
More Propane

Other Propane Lifts

Propane Patriot G25
G25 5,000 lbs
Dual Fuel Patriot G45
G45 10,000 lbs

Ready to Put the G35 to Work?

Connect with an authorized dealer near you for pricing, a demo, or fleet solutions.

Find Your Dealer
G35 Full Specifications
Performance
Rated Capacity8,000 lbs
Max Travel Speed12.4 mph
Max Lift Speed17.3 in/s
Gradeability20%
Engine
ModelPSI/Kubota
Power Output58.3 Hp @ 2,600 rpm
Max Torque175 N·m @ 1,200 rpm
Displacement2,491 cc — 4-Cylinder
Fuel TypePropane / LPG
Tank Capacity15.85 Gallons
TransmissionHydraulic — 1F / 1R
Operating Pressure18 MPa
Battery12V / 80Ah
Mast & Forks
Mast Type3-Stage
Max Lift Height118"
Lowered Height83"
Extended Height163"
Tilt Angle6° Forward / 12° Rear
Fork Dimensions42 × 4.9 × 1.97"
Dimensions
Overall Length109"
Overall Width48"
Wheelbase67"
Turning Radius97"
Min Aisle Width100"
Guard Height85"
Ground Clearance6"
Weight & Tires
Service Weight9,923 lbs
Front Tires28×9-15-14 Pneumatic (×2)
Rear Tires6.50-10-10 Pneumatic (×2)
PaintUSA DuPont Automotive
Specifications subject to change without notice. Find a Dealer
