FB25

Steps up to 5,500 lbs with a bigger 630Ah battery pack — same compact chassis as the FB20, more capacity and runtime.

5,500 lbs Capacity
118" Lift Height
Curtis AC Motor
Find a Dealer
FB25 Patriot FB25 Electric Forklift
Ideal For

Where the FB25 Goes to Work

Distribution Centers
Higher capacity for heavier pallet loads throughout shift cycles.
Food & Beverage
Zero emissions for indoor food-safe environments and prep areas.
3PL Warehousing
Longer battery runtime for multi-shift operations without downtime.
E-Commerce Fulfillment
Handles the volume at 5,500 lbs per cycle with extended runtime.
Specifications

FB25 at a Glance

Full spec sheet available for download below.
5,500 lbs
Rated Capacity
118"
Max Lift Height
Curtis AC
Motor — 11 kW Drive
Electric
Fuel Type — 48V/630Ah
10,580 lbs
Service Weight
8.7 mph
Max Travel Speed
81.7"
Turning Radius
15%
Gradeability

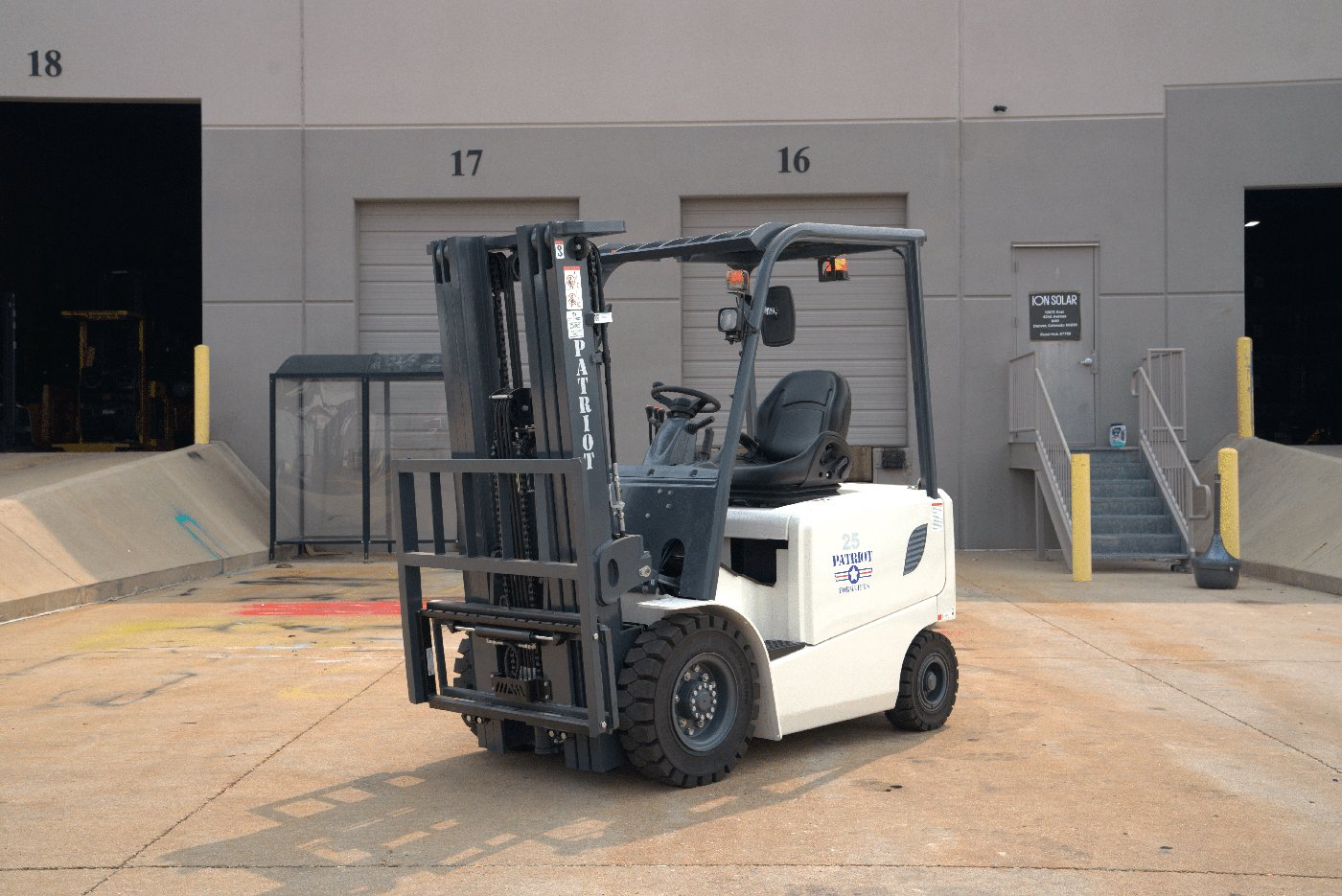

Patriot FB25 — gallery image 1

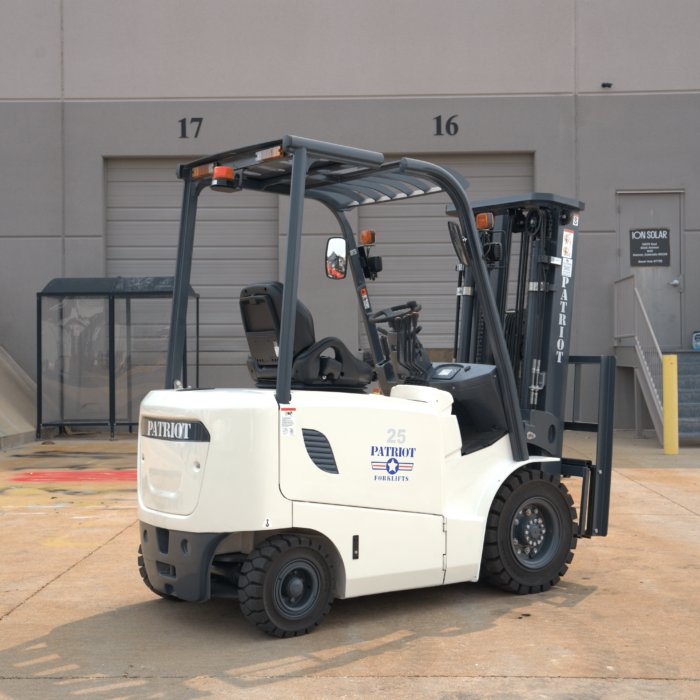

Patriot FB25 — gallery image 2

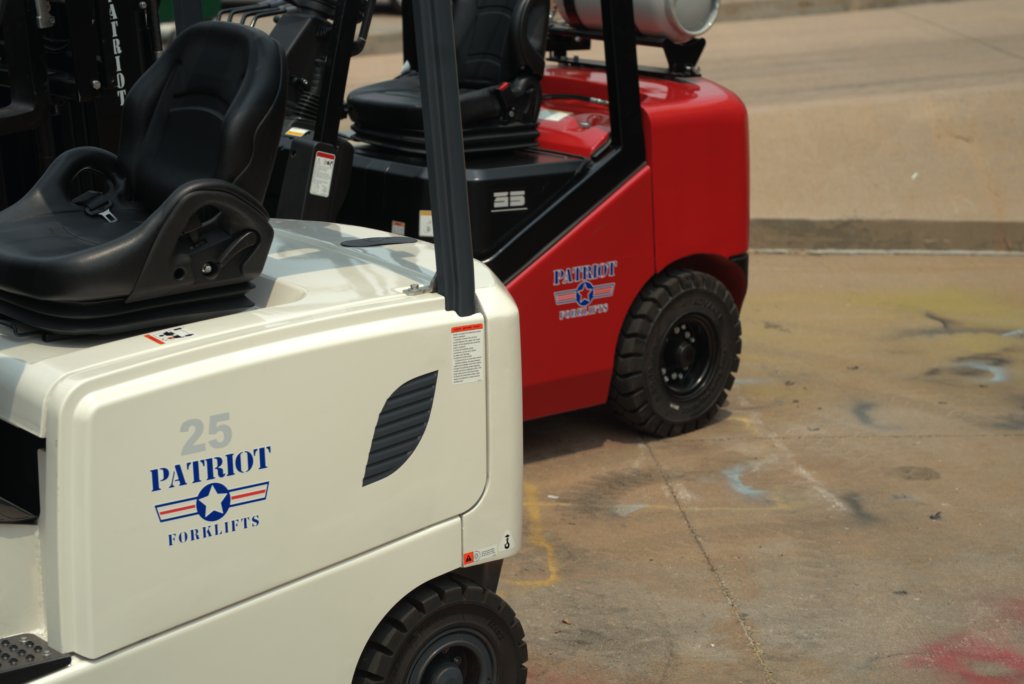

Patriot FB25 — gallery image 3

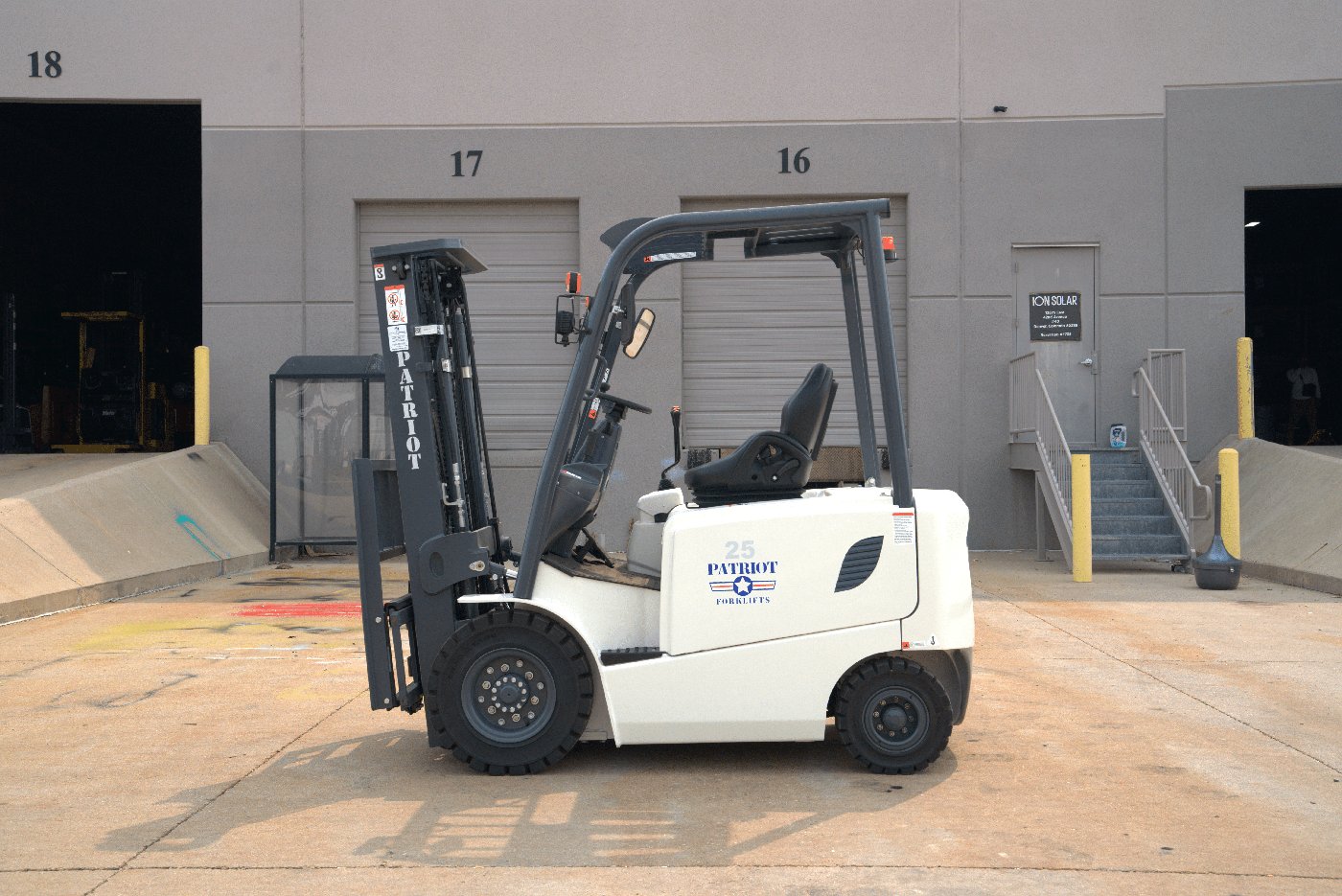

Patriot FB25 — gallery image 4

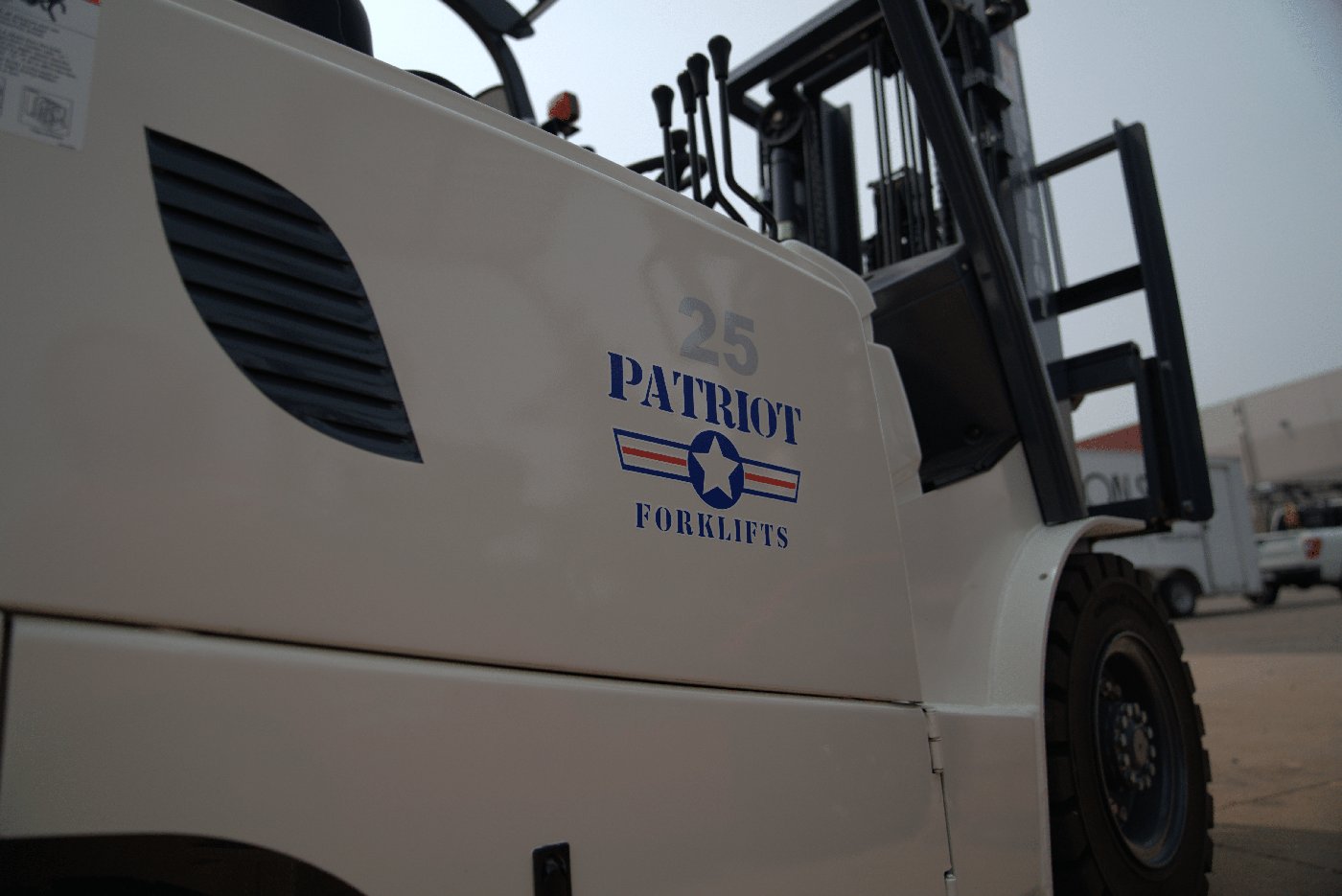

Patriot FB25 — gallery image 5

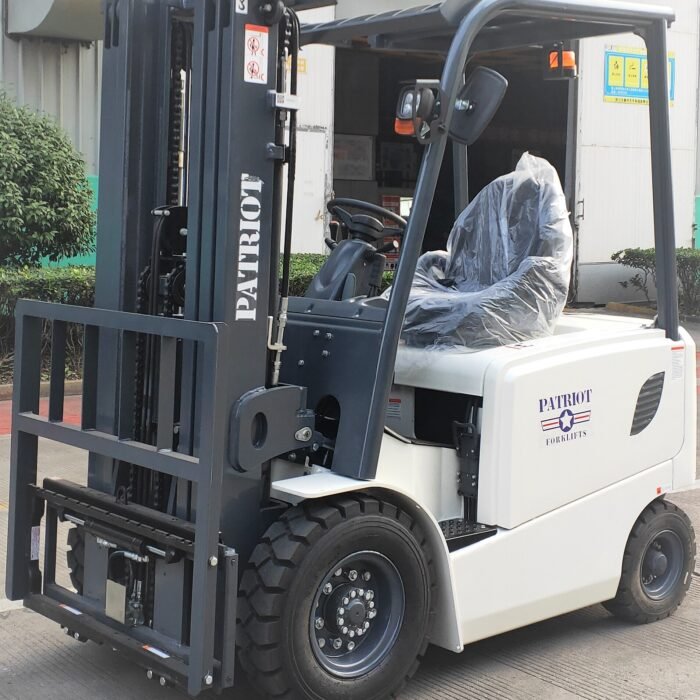

Patriot FB25 — gallery image 6

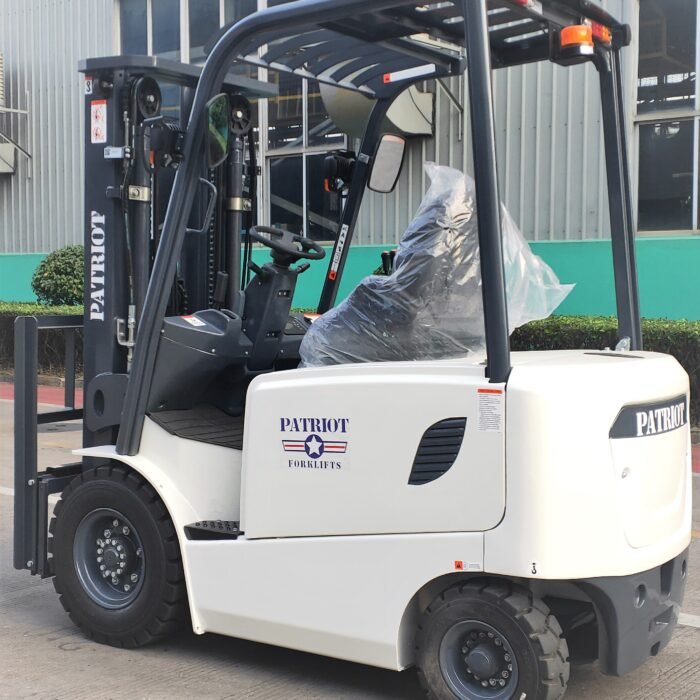

Patriot FB25 — gallery image 7
Standard Upgraded Components
Blue LED Safety Light
LED Safety Light
Blue spot warning light alerts pedestrians to forklift approach in busy work zones.
Suspension Seat
Suspension Seat
Premium integrated suspension seat reduces operator fatigue during extended shifts.
Emergency Brakes
Emergency Brakes
Heavy-duty emergency braking system for reliable stopping power in any condition.
Resources
FB25 Downloads
Download Catalog (PDF)
More Electric

Other Electric Lifts

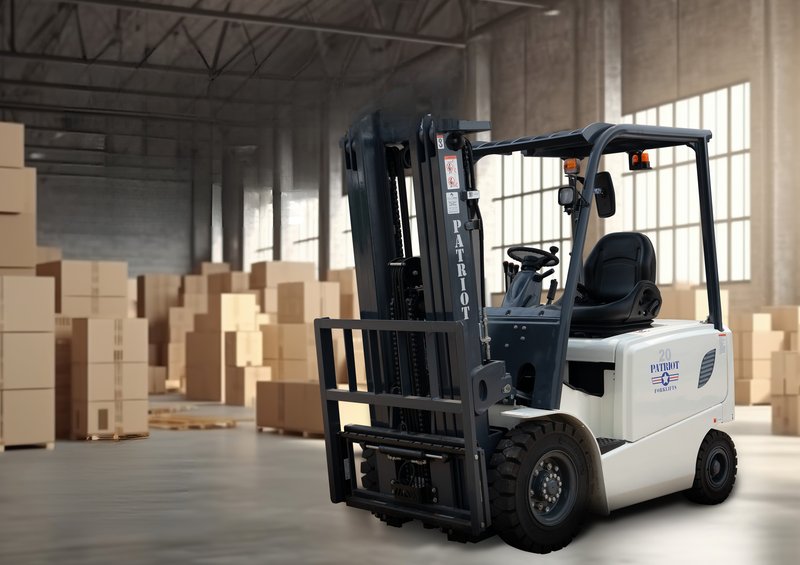

Electric Patriot FB20
FB20 4,500 lbs

Ready to Put the FB25 to Work?

Connect with an authorized dealer near you for pricing, a demo, or fleet solutions.

Find Your Dealer
FB25 Full Specifications
Performance
Rated Capacity5,500 lbs
Max Travel Speed8.7 mph
Max Lift Speed10.6 in/s
Gradeability15%
Motor & Battery
Motor TypeCurtis AC
Drive Power11 kW
Lift Power8.6 kW
Battery Voltage48V
Battery Capacity630Ah
TransmissionAC Controller
Mast & Forks
Mast Type2-Stage
Max Lift Height118"
Lowered Height80.9"
Extended Height155.9"
Tilt Angle6° Forward / 12° Rear
Fork Dimensions42 × 4.7 × 1.57"
Dimensions
Overall Length92.9"
Overall Width45.7"
Wheelbase59.4"
Turning Radius81.7"
Min Aisle Width88.6"
Guard Height88.2"
Ground Clearance4.3"
Weight & Tires
Service Weight10,580 lbs
Front Tires7.00-12-12 Pneumatic (×2)
Rear Tires18×7-8-14 Pneumatic (×2)
Specifications subject to change without notice. Find a Dealer
