Models  /  FD50
Diesel

FD50

11,000 lbs of Cummins-powered lift with a 125L tank and dual-speed transmission — the heavy-duty workhorse for operations that don't stop.

11,000 lbs Capacity
118" Lift Height
Cummins Engine
Find a Dealer

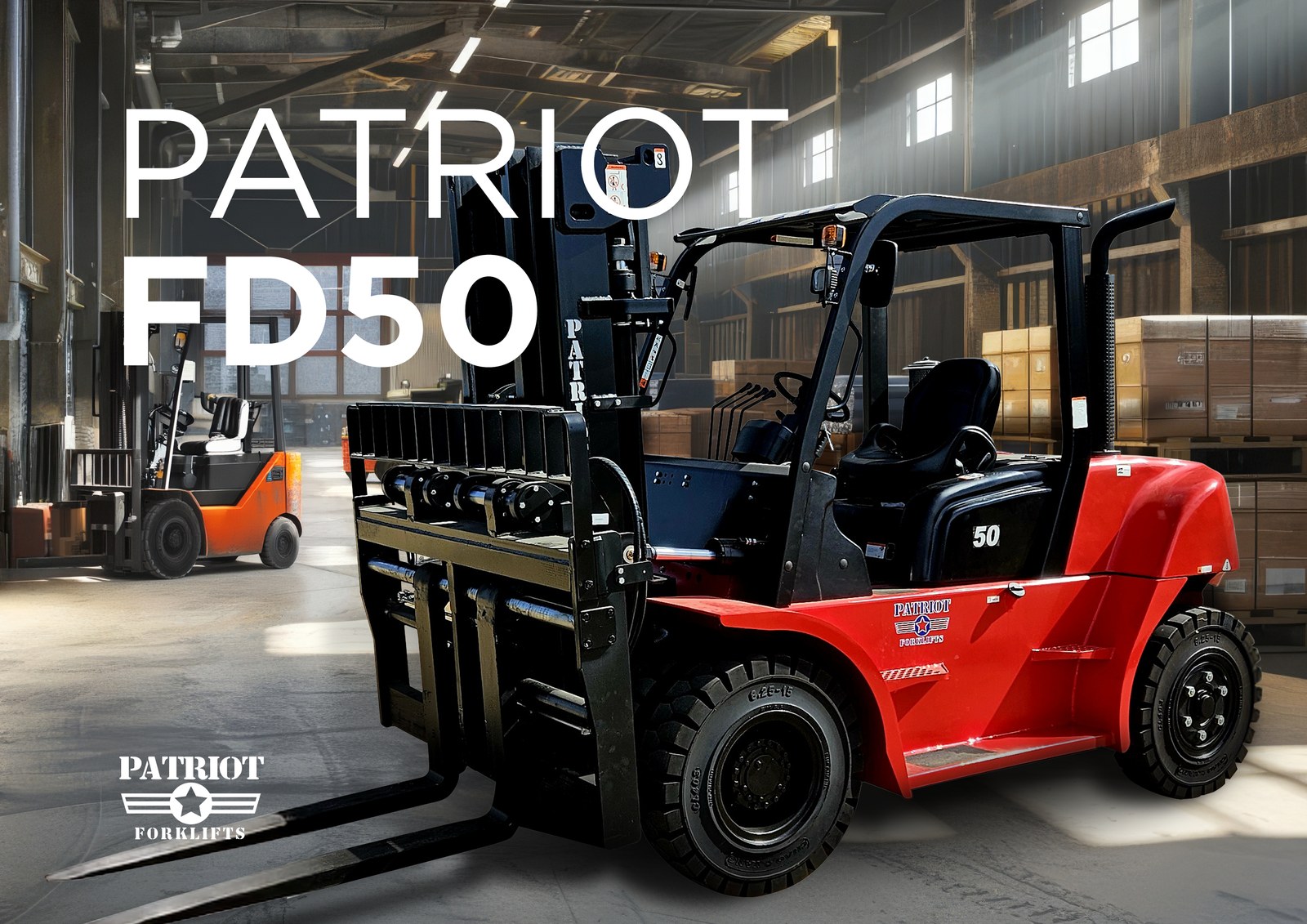

FD50 Patriot FD50 Diesel Forklift
Ideal For

Where the FD50 Goes to Work

Steel & Metal Fabrication
11,000 lbs handles coils, plate, and heavy stock all day.
Container Handling
Cummins torque for loaded containers and tough materials.
Industrial Yards
125L tank for full-shift outdoor operation without refueling.
Heavy Manufacturing
Dual-speed transmission for loaded travel and precise lifting.
Specifications

FD50 at a Glance

Full spec sheet available for download below.
11,000 lbs
Rated Capacity
118"
Max Lift Height
Cummins — 55 kW
Engine
Diesel — 125L
Fuel Tank
17,968 lbs
Service Weight
18.6 mph
Max Travel Speed
128"
Turning Radius
20%
Gradeability

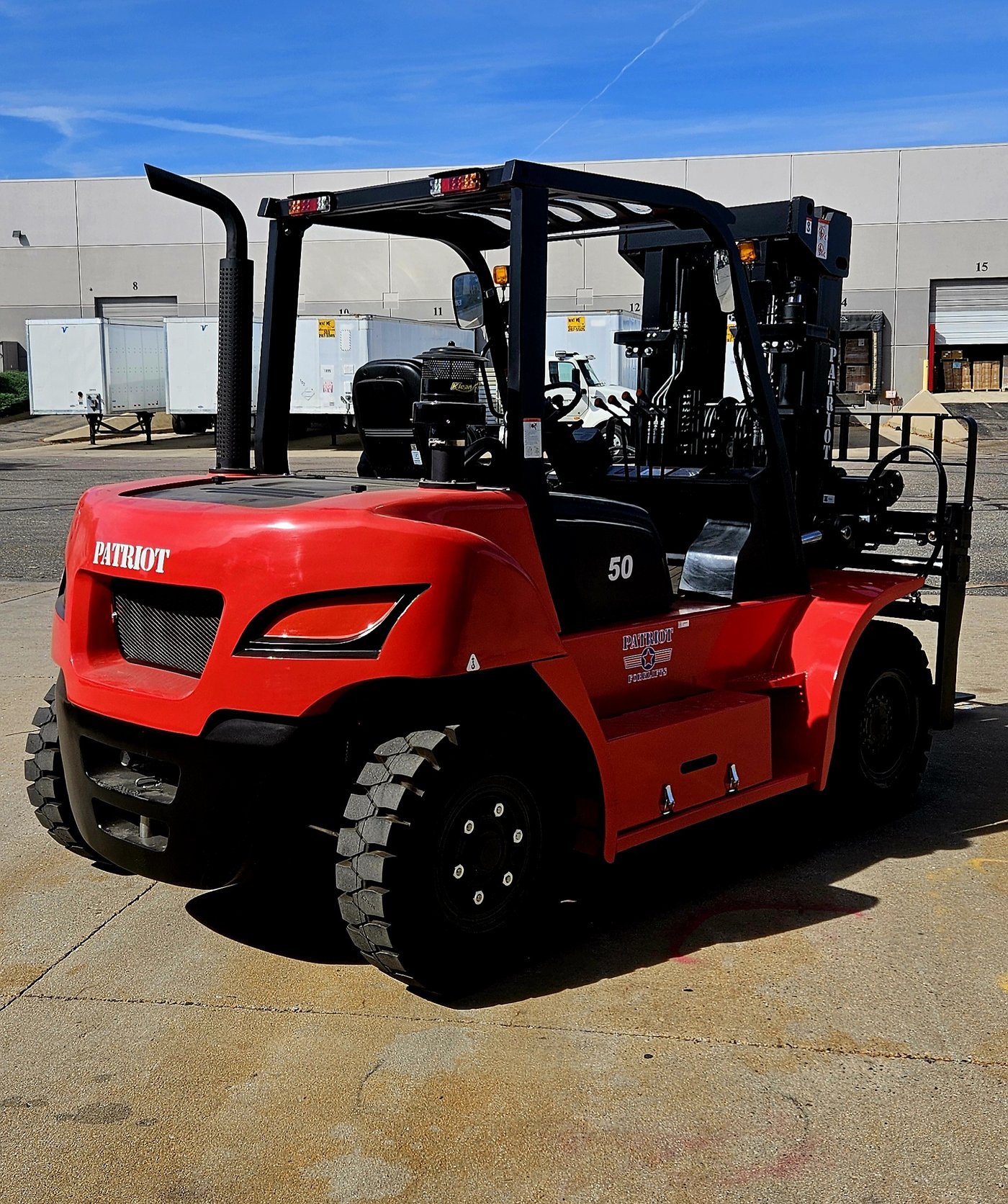

Patriot FD50 — gallery image 1
Patriot FD50 — gallery image 2

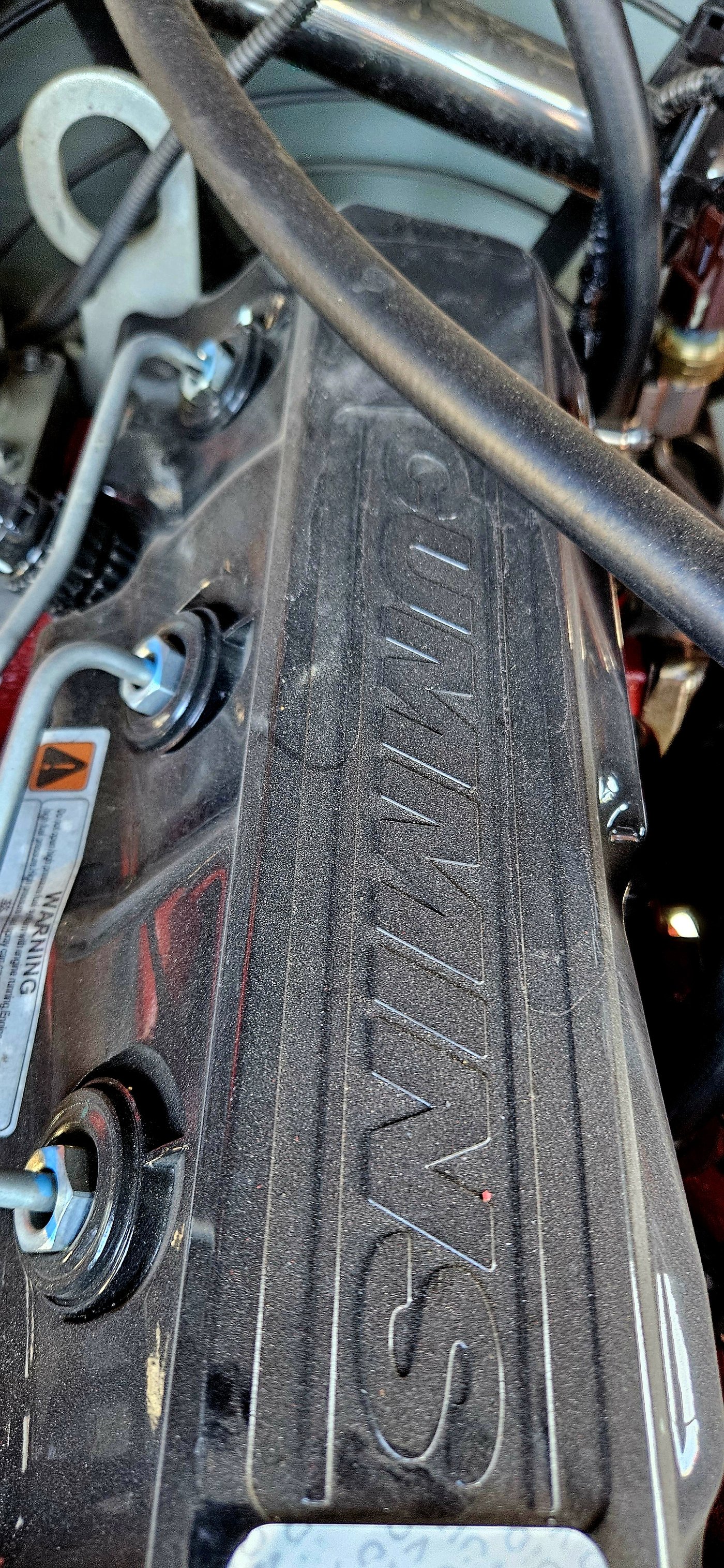

Patriot FD50 — gallery image 3

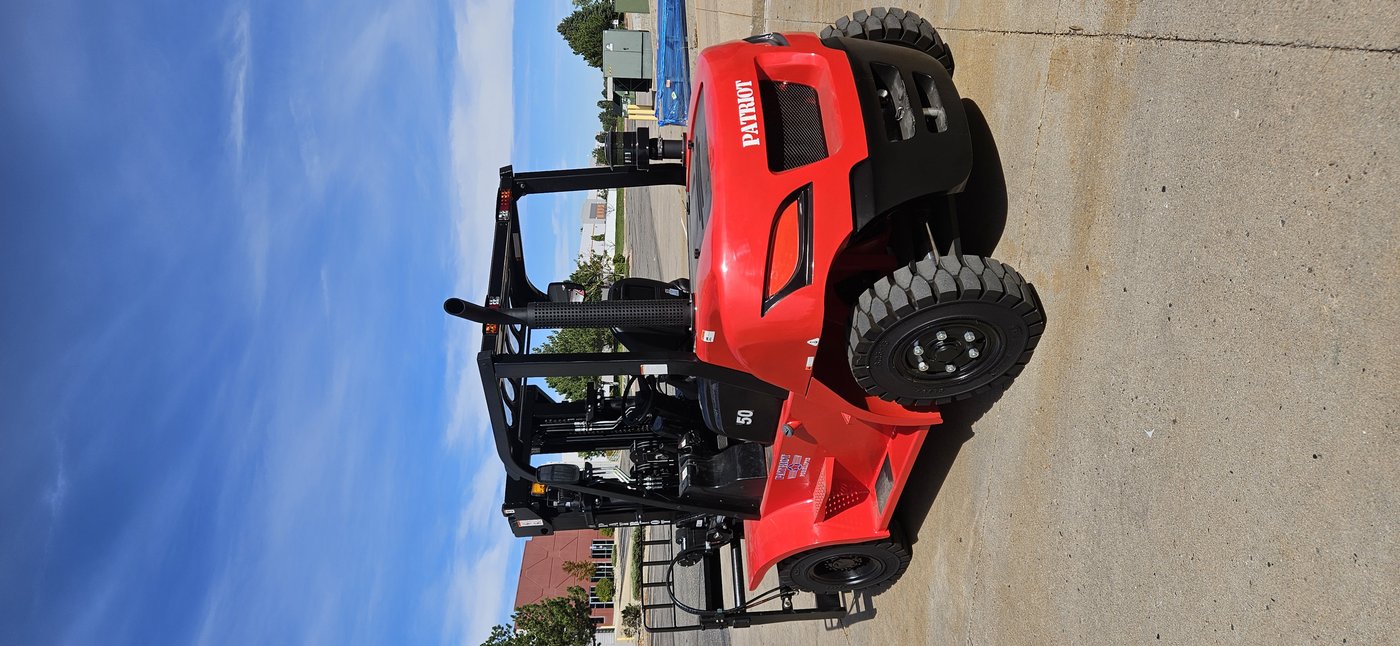

Patriot FD50 — gallery image 4

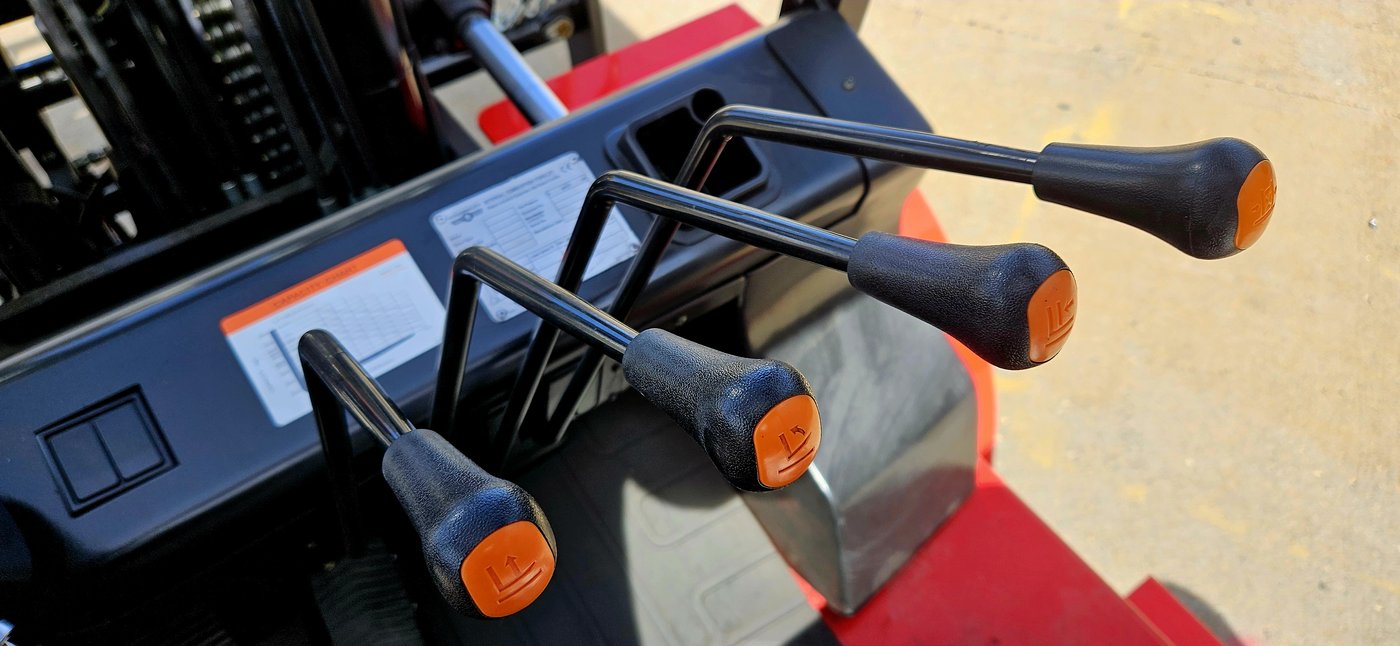

Patriot FD50 — gallery image 5

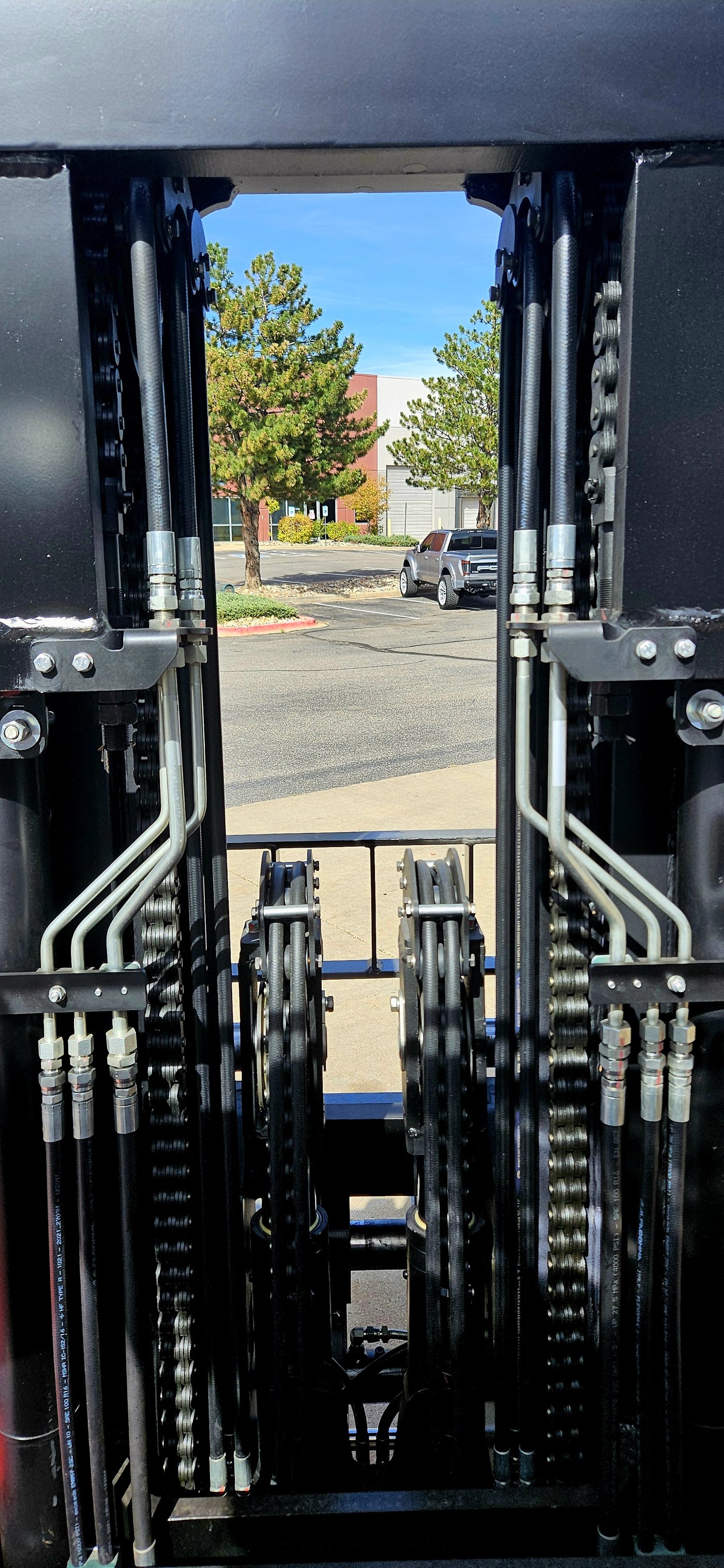

Patriot FD50 — gallery image 6

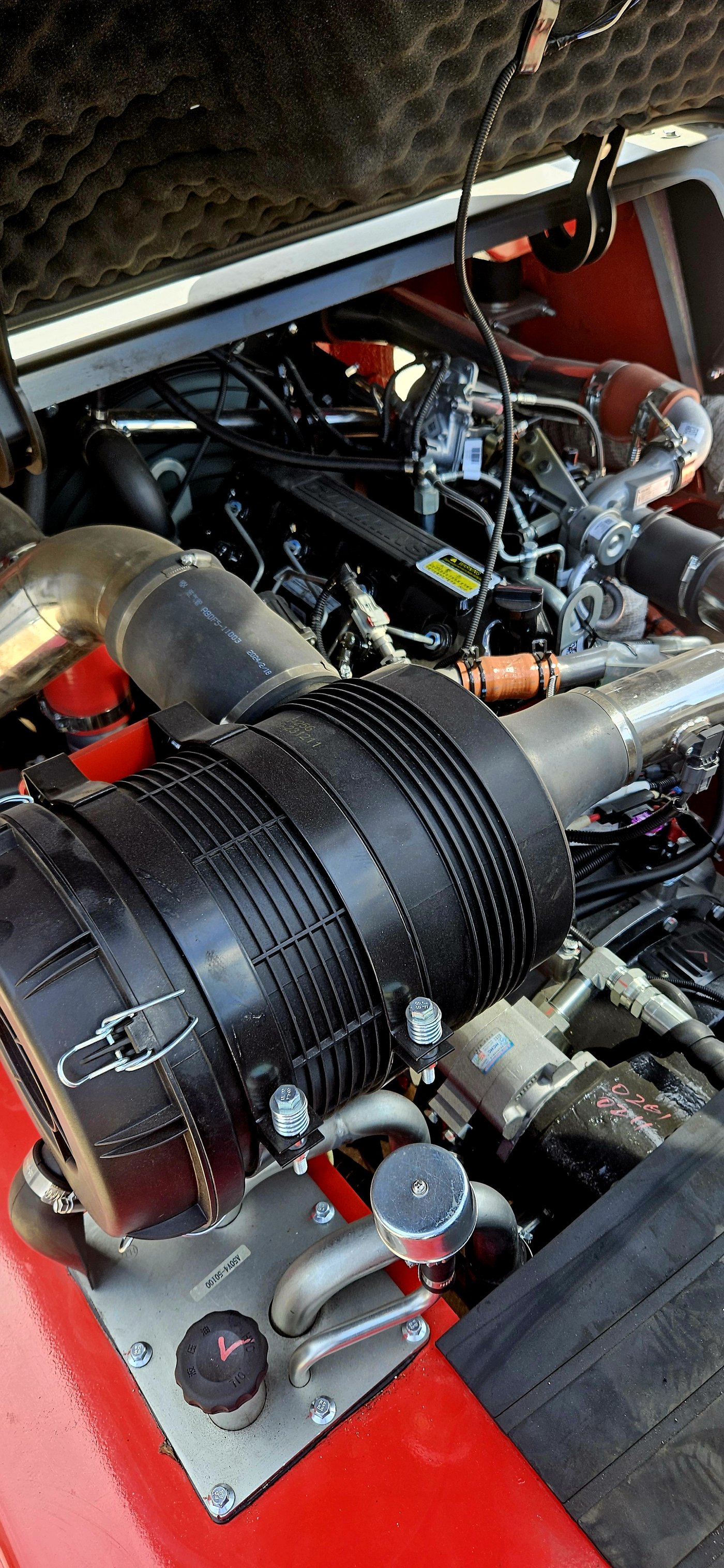

Patriot FD50 — gallery image 7

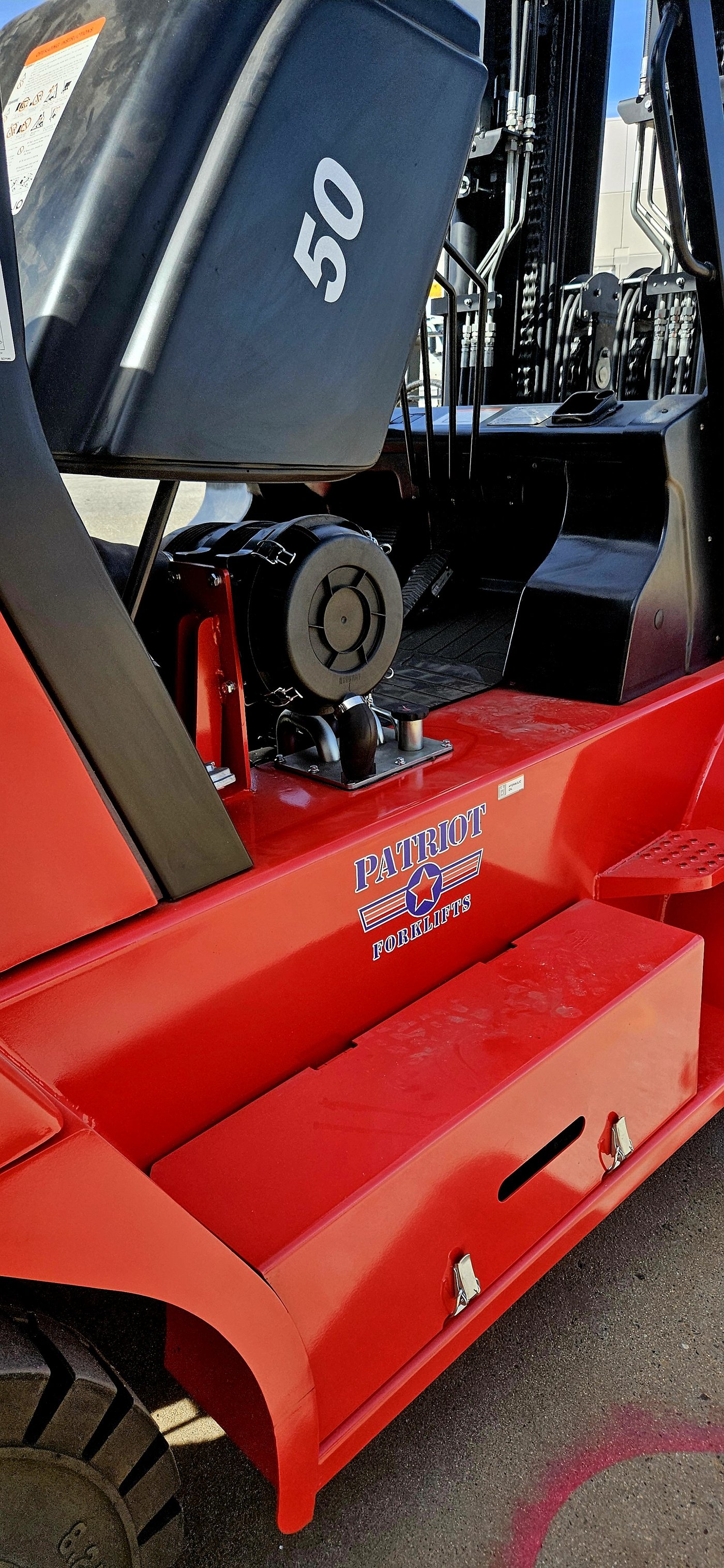

Patriot FD50 — gallery image 8
Standard Upgraded Components
Blue LED Safety Light
LED Safety Light
Blue spot warning light alerts pedestrians to forklift approach in busy work zones.
Suspension Seat
Suspension Seat
Premium integrated suspension seat reduces operator fatigue during extended shifts.
Emergency Brakes
Emergency Brakes
Heavy-duty emergency braking system for reliable stopping power in any condition.
Resources
FD50 Downloads
Download Catalog (PDF)
More Diesel

Other Diesel Lifts

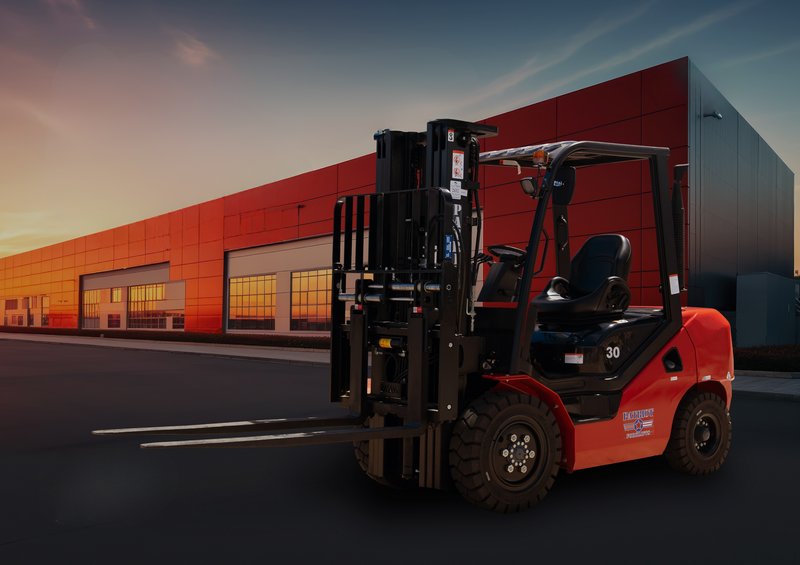

Diesel Patriot FD30
FD30 6,000 lbs

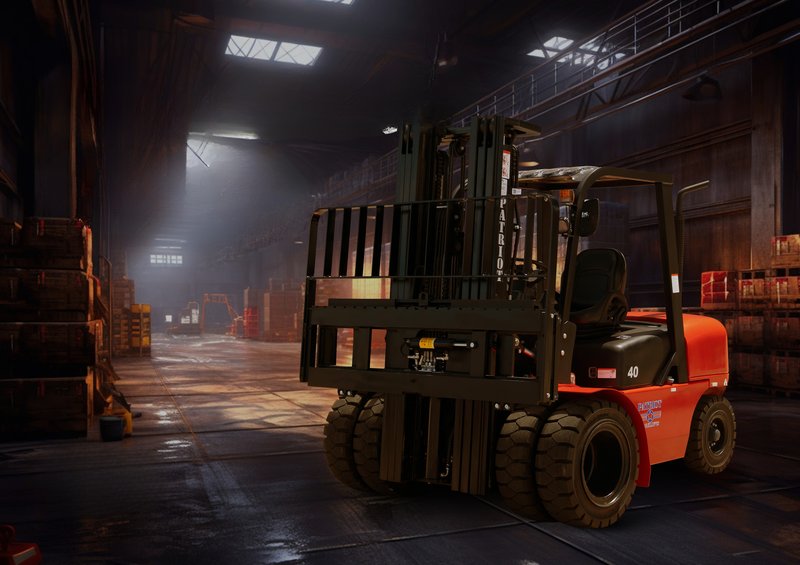

Diesel Patriot FD40
FD40 9,000 lbs

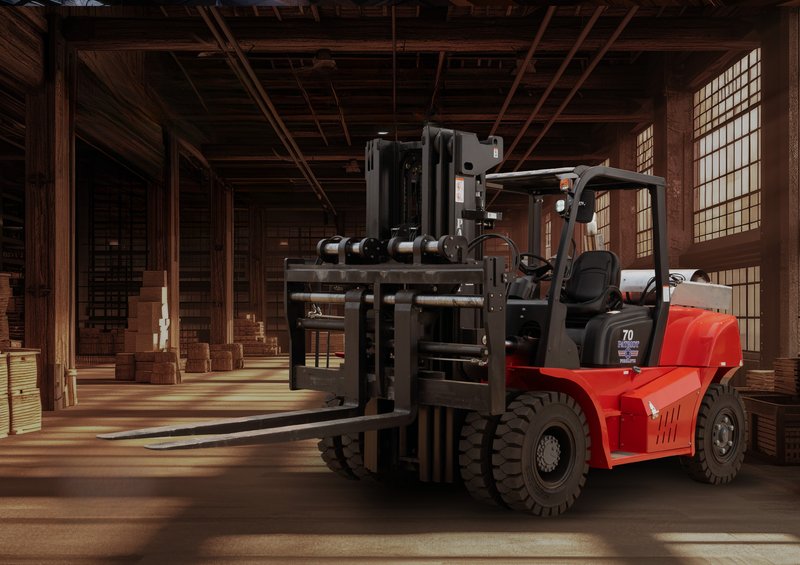

Diesel Patriot FD70
FD70 15,500 lbs

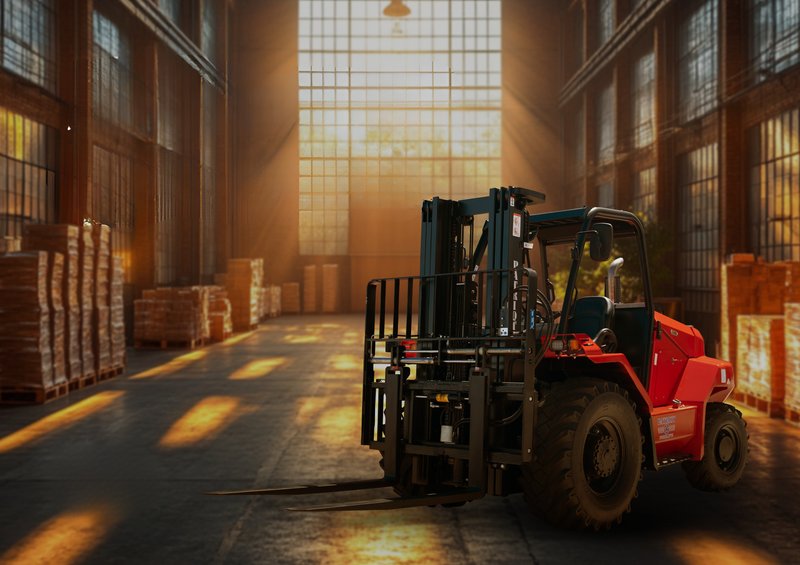

Rough Terrain Patriot FD35RT4
FD35RT4 8,000 lbs · Rough Terrain

Ready to Put the FD50 to Work?

Connect with an authorized dealer near you for pricing, a demo, or fleet solutions.

Find Your Dealer
FD50 Full Specifications
Performance
Rated Capacity11,000 lbs
Max Travel Speed18.6 mph
Max Lift Speed19.7 in/s
Gradeability20%
Engine
ModelCummins
Power Output55 kW @ 2,500 rpm
Max Torque400 N·m @ 1,300 rpm
Displacement3,800 cc — 4-Cylinder
Fuel TypeDiesel
Fuel Tank125 L
TransmissionHydraulic — 2F / 2R
Mast & Forks
Mast Type2-Stage
Max Lift Height118"
Lowered Height98.4"
Extended Height173.8"
Tilt Angle6° Forward / 12° Rear
Fork Dimensions48 × 5.9 × 2.36"
Dimensions
Overall Length135.4"
Overall Width79.1"
Wheelbase88.6"
Turning Radius128"
Min Aisle Width116.5"
Guard Height95.7"
Ground Clearance7.9"
Weight & Tires
Service Weight17,968 lbs
Front Tires8.25-15-14 Air Pneumatic (×4)
Rear Tires8.25-15-14 Air Pneumatic (×2)
Battery(12V/80Ah) × 2
Specifications subject to change without notice. Find a Dealer
