Models  /  FB20
Electric

FB20

A compact 4,500-lb electric lift with zero emissions and a tight 81" turning radius — warehouse-ready right out of the crate.

4,500 lbs Capacity
118" Lift Height
Curtis AC Motor
Find a Dealer

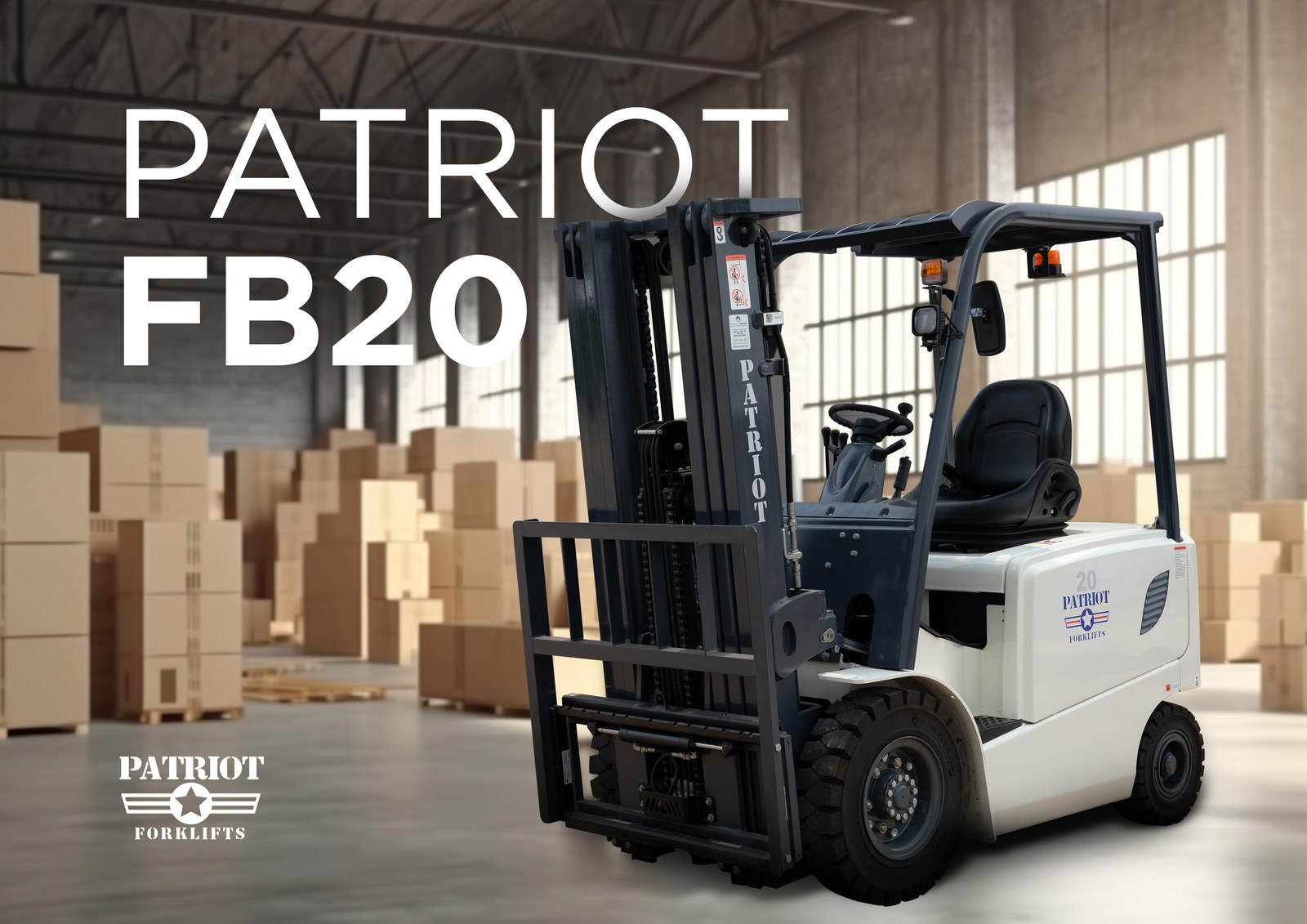

FB20 Patriot FB20 Electric Forklift
Ideal For

Where the FB20 Goes to Work

Indoor Warehousing
Zero emissions, runs clean indoors for climate-controlled environments.
Cold Storage
Electric power with no exhaust in sealed, refrigerated spaces.
Light Manufacturing
4,500 lbs handles standard pallets and production fixtures.
Retail Distribution
Compact footprint fits narrow dock areas and tight aisles.
Specifications

FB20 at a Glance

Full spec sheet available for download below.
4,500 lbs
Rated Capacity
118"
Max Lift Height
Curtis AC
Motor — 14.75 Hp Drive
Electric
Fuel Type — 48V/560Ah
9,383 lbs
Service Weight
8.7 mph
Max Travel Speed
81.7"
Turning Radius
15%
Gradeability

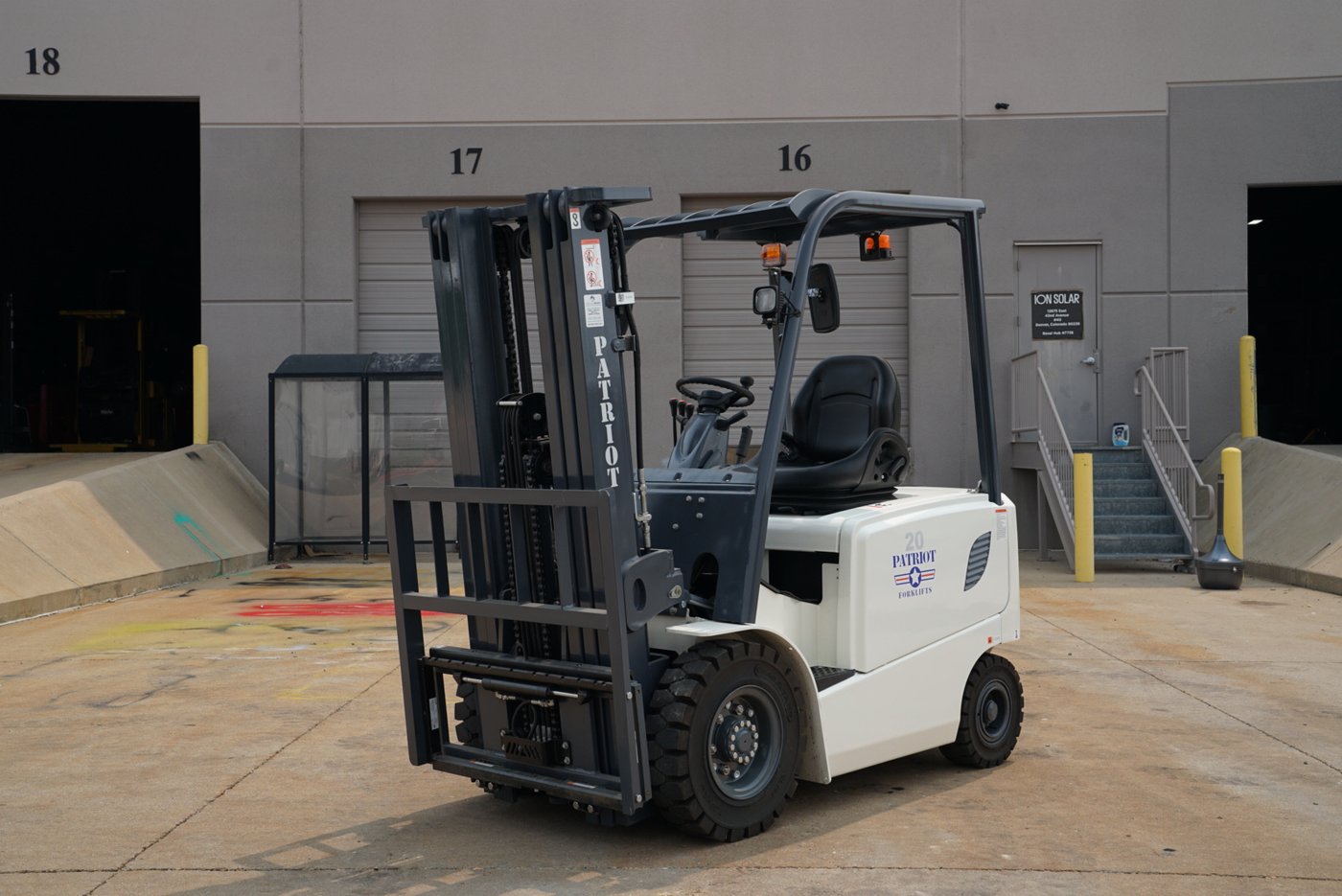

Patriot FB20 — gallery image 1

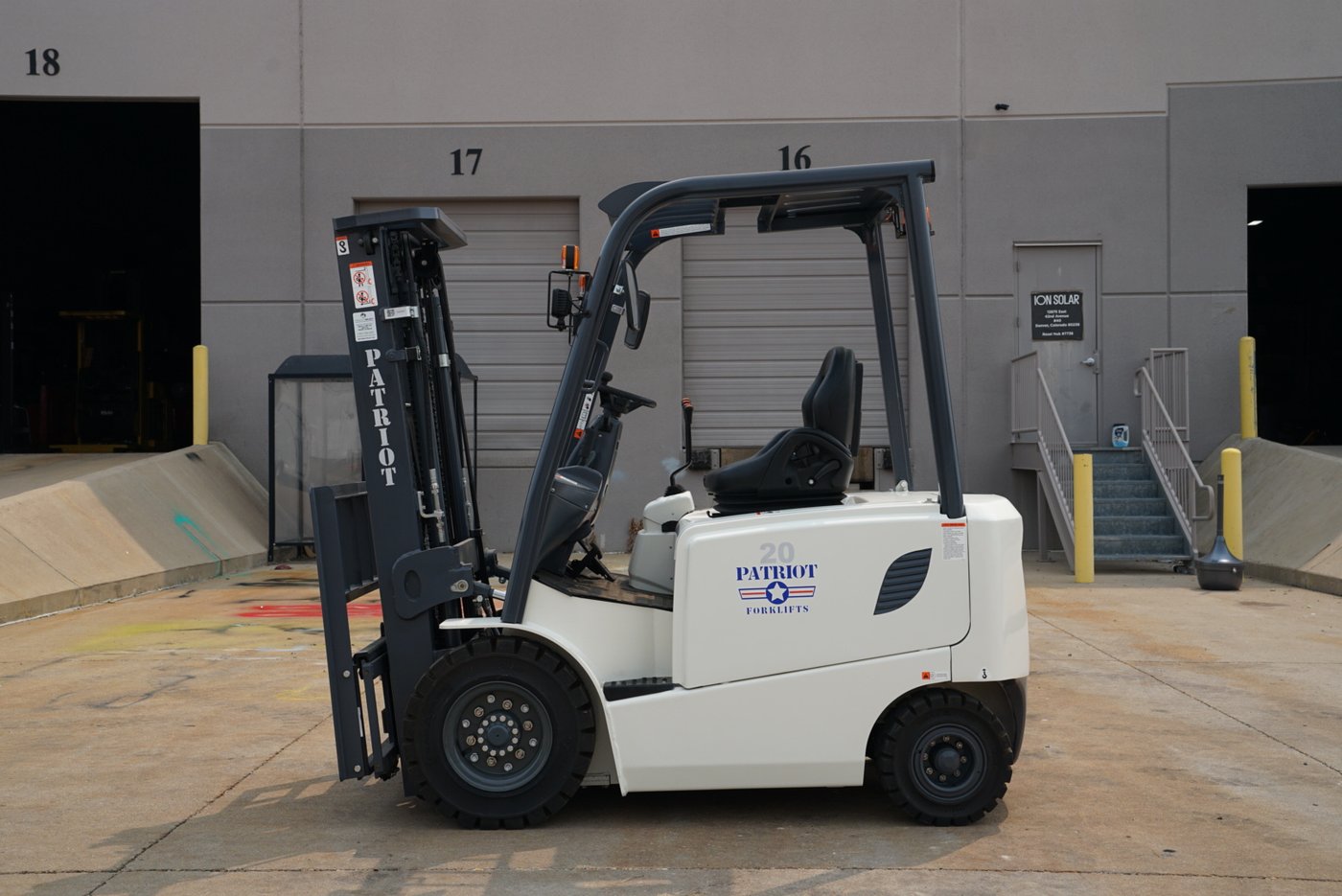

Patriot FB20 — gallery image 2

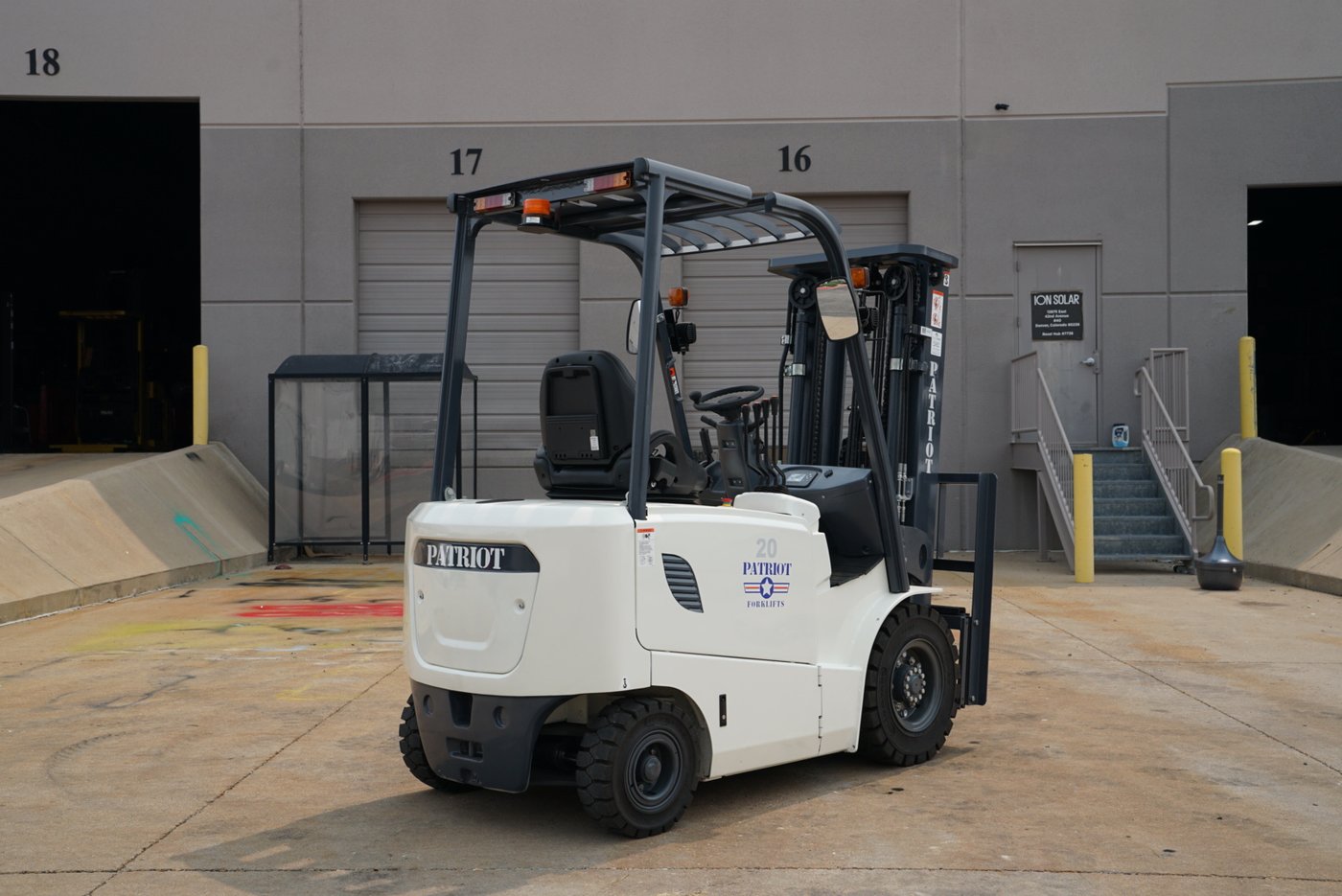

Patriot FB20 — gallery image 3

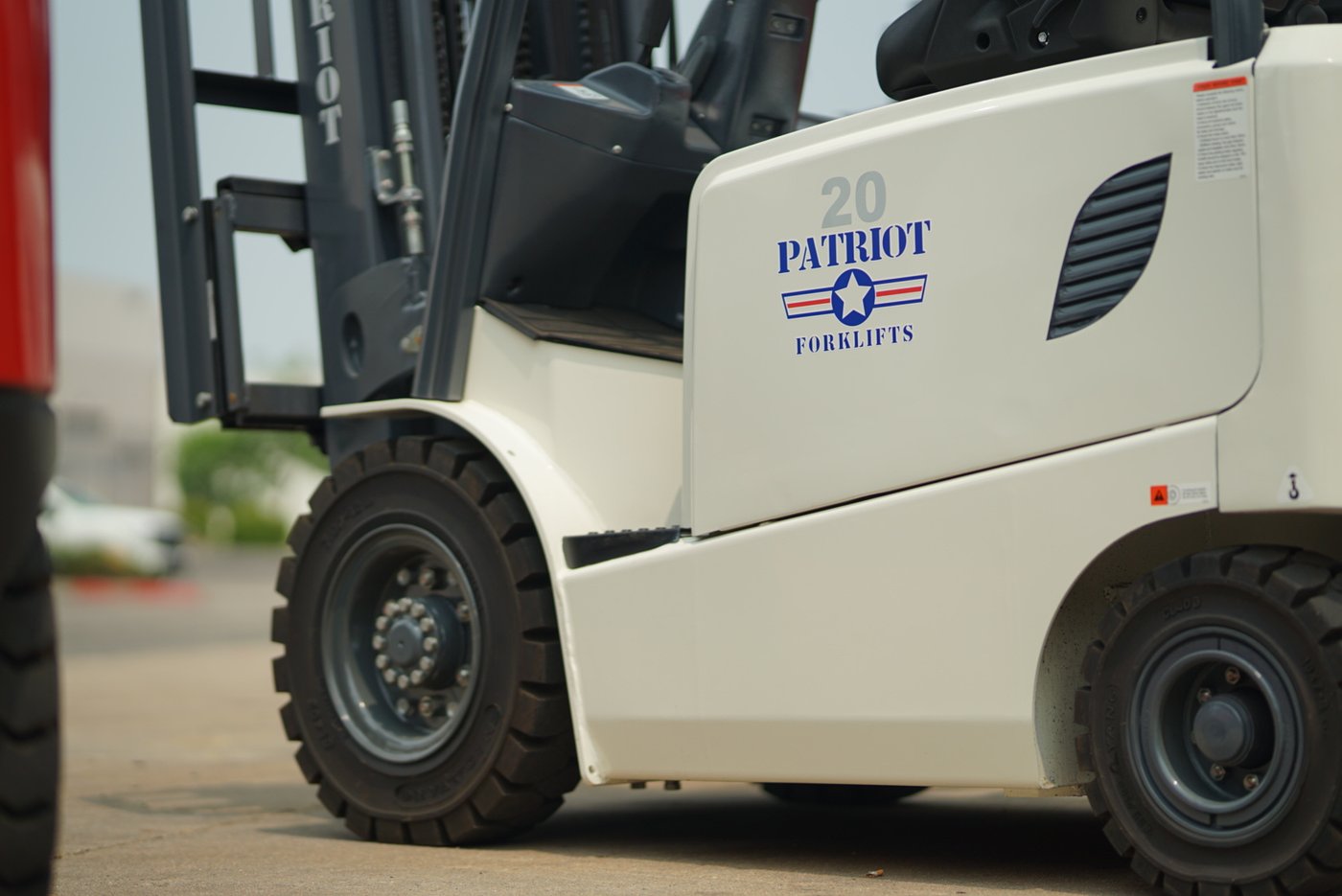

Patriot FB20 — gallery image 4

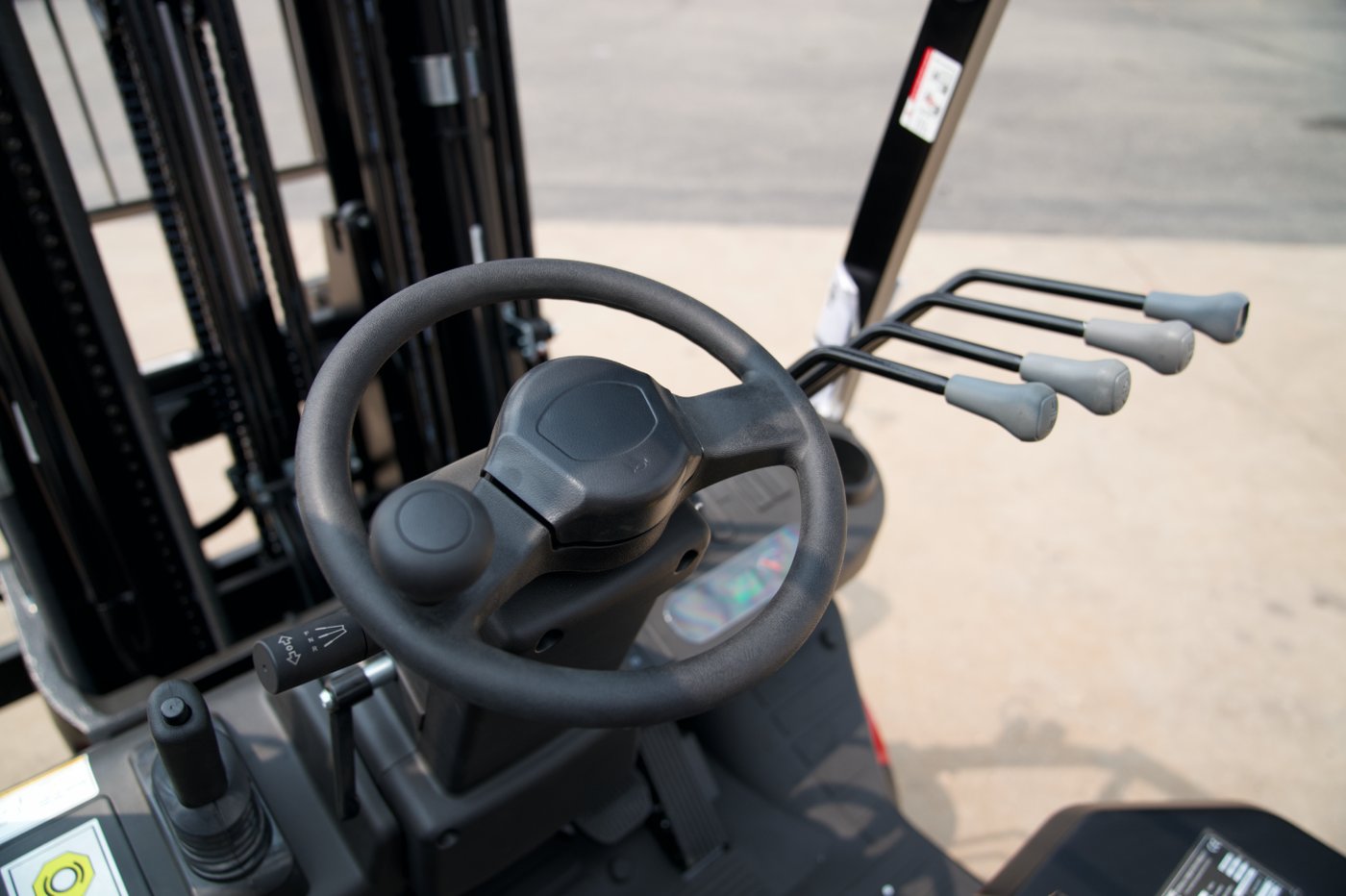

Patriot FB20 — gallery image 5
Standard Upgraded Components
Blue LED Safety Light
LED Safety Light
Blue spot warning light alerts pedestrians to forklift approach in busy work zones.
Suspension Seat
Suspension Seat
Premium integrated suspension seat reduces operator fatigue during extended shifts.
Emergency Brakes
Emergency Brakes
Heavy-duty emergency braking system for reliable stopping power in any condition.
Resources
FB20 Downloads
Download Catalog (PDF)
More Electric

Other Electric Lifts

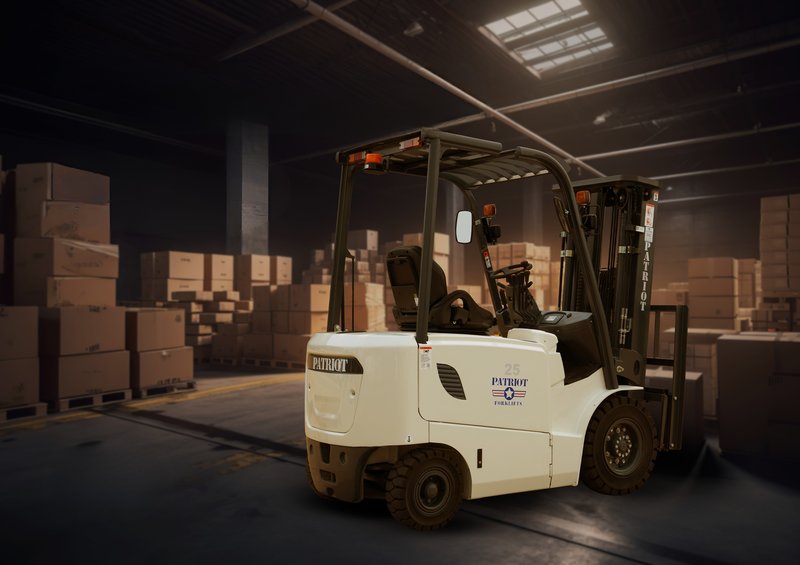

Electric Patriot FB25
FB25 5,500 lbs

Ready to Put the FB20 to Work?

Connect with an authorized dealer near you for pricing, a demo, or fleet solutions.

Find Your Dealer
FB20 Full Specifications
Performance
Rated Capacity4,500 lbs
Max Travel Speed8.7 mph
Max Lift Speed11.8 in/s
Gradeability15%
Motor & Battery
Motor TypeCurtis AC
Drive Power14.75 Hp
Lift Power11.53 Hp
Battery Voltage48V
Battery Capacity560Ah
TransmissionAC Controller
Mast & Forks
Mast Type2-Stage
Max Lift Height118"
Lowered Height80.9"
Extended Height156"
Tilt Angle6° Forward / 12° Rear
Fork Dimensions42 × 4.7 × 1.6"
Dimensions
Overall Length93"
Overall Width45.7"
Wheelbase59.4"
Turning Radius81.7"
Min Aisle Width88.6"
Guard Height88.2"
Ground Clearance4.3"
Weight & Tires
Service Weight9,383 lbs
Front Tires7.00-12-12 Pneumatic (×2)
Rear Tires18×7-8-14 Pneumatic (×2)
