Models  /  FD30
Diesel

FD30

A 6,000-lb diesel workhorse with a compact footprint. Tight turning radius, 189" triple-stage mast, and Kohler power — built for the operator who needs to move heavy pallets in real warehouse aisles.

6,000 lbs Capacity
189" Lift Height
Kohler Engine
Find a Dealer

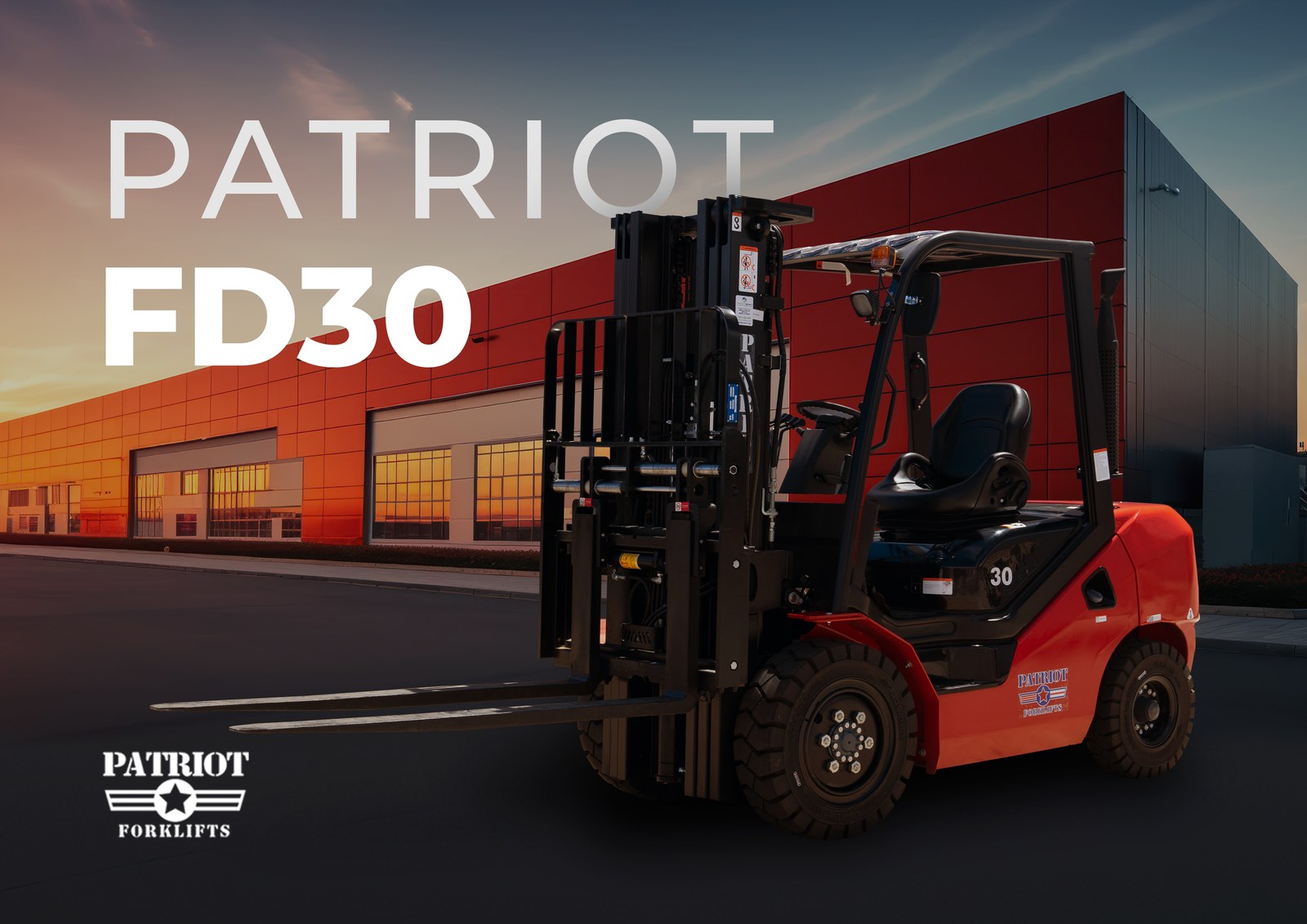

FD30 Patriot FD30 Diesel Forklift
Ideal For

Where the FD30 Goes to Work

Warehousing
Tight 98" aisle clearance and triple-stage mast for high-rack storage.
Distribution
14.9 mph travel speed keeps dock-to-rack cycles fast.
Manufacturing
6,000 lbs rated capacity handles heavy raw material and finished goods.
Lumber & Building
60" forks and 20% gradeability for yard work and loading bays.
Specifications

FD30 at a Glance

Full spec sheet available for download below.
6,000 lbs
Rated Capacity
189"
Max Lift Height
Kohler
Engine — 55.4 kW, 4-Cyl
Diesel
Fuel Type — 60L Tank
9,482 lbs
Service Weight
14.9 mph
Max Travel Speed
95.3"
Turning Radius
20%
Gradeability

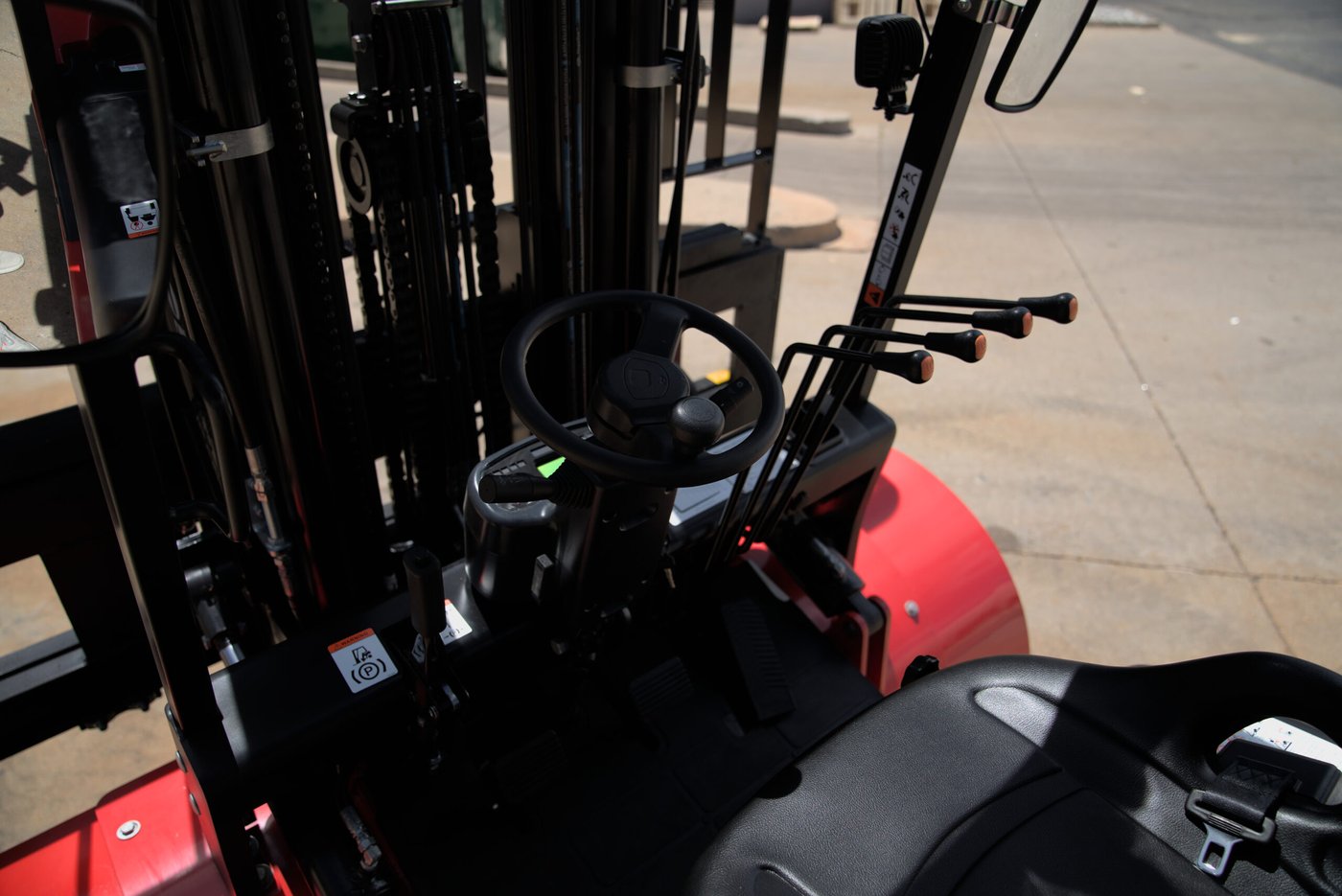

Patriot FD30 — gallery image 1

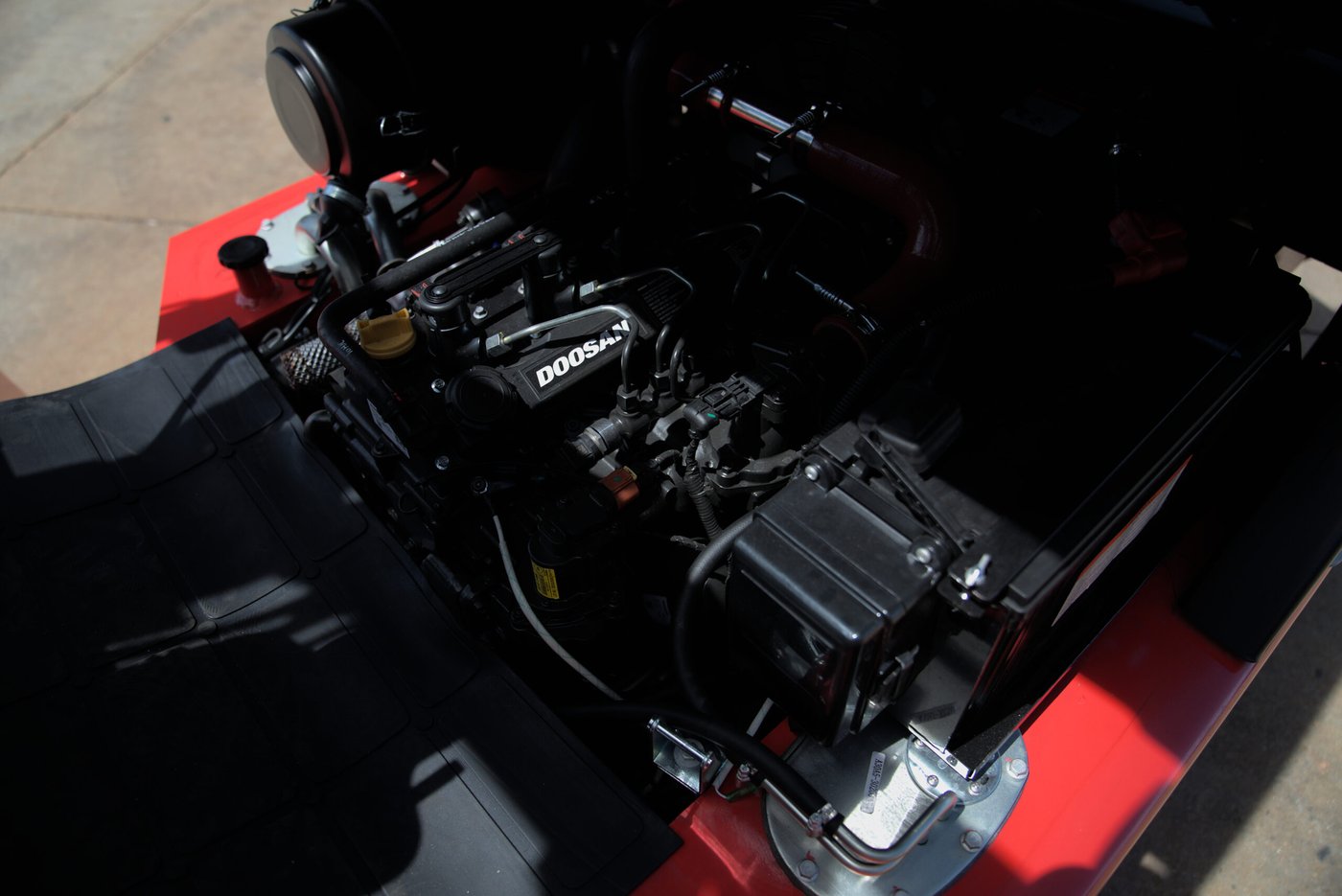

Patriot FD30 — gallery image 2

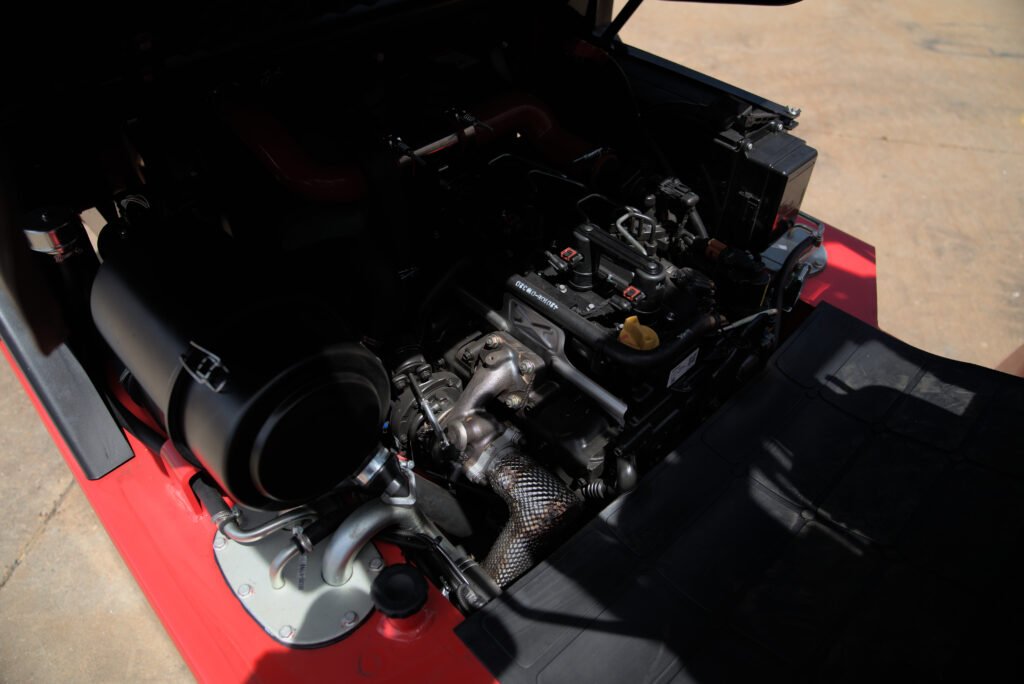

Patriot FD30 — gallery image 3
Standard Upgraded Components
Blue LED Safety Light
LED Safety Light
Blue spot warning light alerts pedestrians to forklift approach in busy work zones.
Suspension Seat
Suspension Seat
Premium integrated suspension seat reduces operator fatigue during extended shifts.
Emergency Brakes
Emergency Brakes
Heavy-duty emergency braking system for reliable stopping power in any condition.
Resources
FD30 Downloads
Download Catalog (PDF)
More Diesel

Other Diesel Lifts

Diesel Patriot FD40
FD40 9,000 lbs
Diesel Patriot FD50
FD50 11,000 lbs
Diesel Patriot FD70
FD70 15,500 lbs
Rough Terrain Patriot FD35RT4
FD35RT4 8,000 lbs · Rough Terrain

Ready to Put the FD30 to Work?

Connect with an authorized dealer near you for pricing, a demo, or fleet solutions.

Find Your Dealer
FD30 Full Specifications
Performance
Rated Capacity6,615 lbs
Max Travel Speed14.93 mph
Max Lift Speed20.1 in/s
Gradeability20%
Engine
ModelKohler KDI1903TCR
Power Output55.4 kW @ 2,600 rpm
Max Torque320 N·m @ 1,600 rpm
Displacement2,392 cc — 4-Cylinder
Fuel TypeDiesel
Fuel Tank60 L
TransmissionHydraulic — 1F / 1R
Mast & Forks
Mast Type3-Stage
Max Lift Height189"
Lowered Height88"
Extended Height235.2"
Tilt Angle6° Forward / 6° Rear
Fork Dimensions60 × 4.9 × 1.77"
Dimensions
Overall Length107.5"
Overall Width48.2"
Wheelbase66.9"
Turning Radius95.3"
Min Aisle Width98"
Guard Height84.6"
Ground Clearance5.5"
Weight & Tires
Service Weight9,482 lbs
Front Tires28×9-15-14 Pneumatic (×2)
Rear Tires6.50-10-10 Pneumatic (×2)
Specifications subject to change without notice. Find a Dealer
