Models  /  FD40
Diesel

FD40

9,000 lbs of Kohler diesel muscle in a mid-size frame — built for the operator who needs to move heavy loads all day without slowing down.

9,000 lbs Capacity
118" Lift Height
Kohler Engine
Find a Dealer

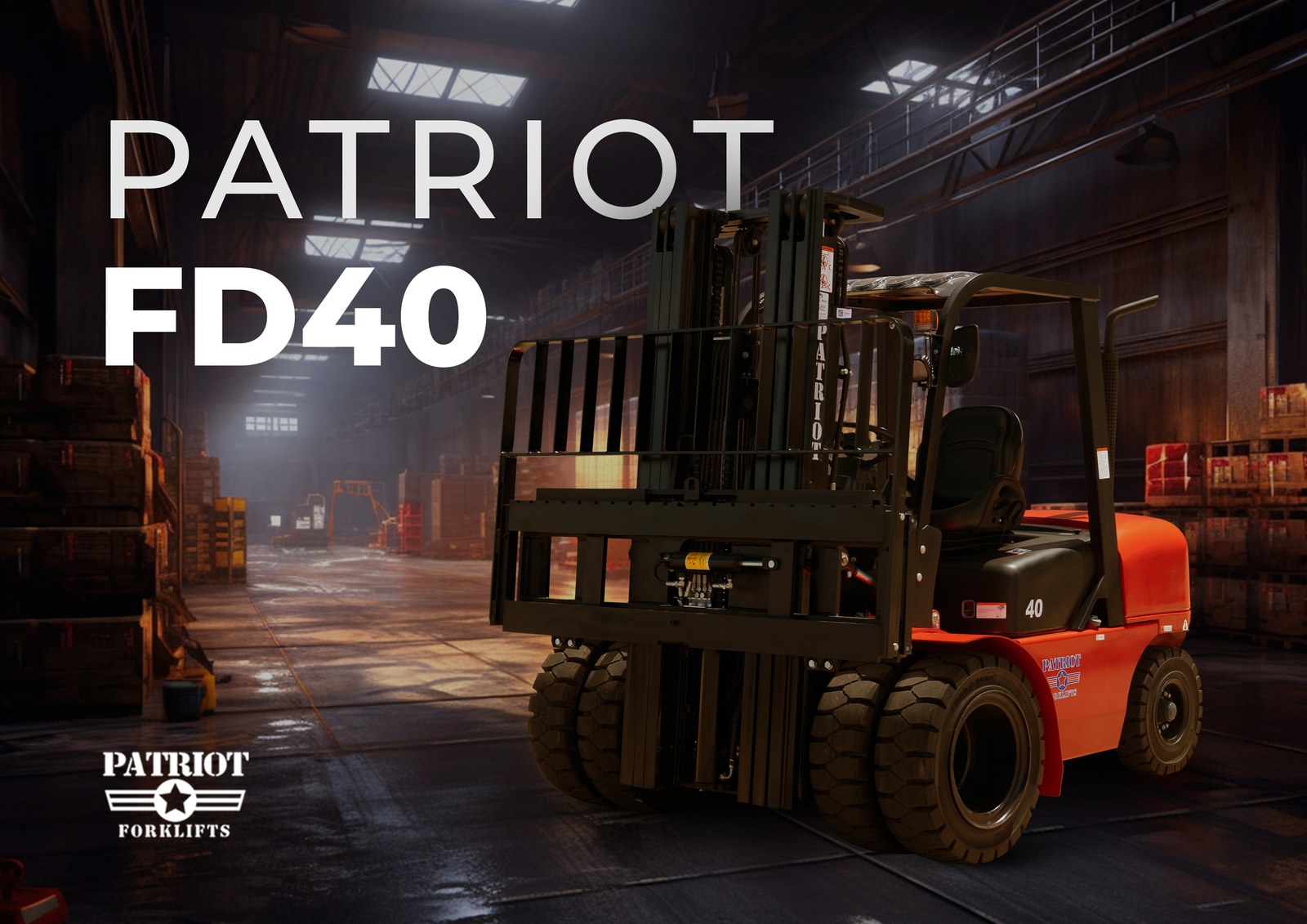

FD40 Patriot FD40 Diesel Forklift
Ideal For

Where the FD40 Goes to Work

Heavy Warehousing
9,000 lbs handles double-stacked pallets and heavy racks all shift long.
Lumber Yards
Kohler diesel power for outdoor yard work and variable terrain.
Manufacturing
Reliable diesel engine for heavy raw materials and finished goods.
Loading Docks
Fast cycle times and high travel speed between truck and rack.
Specifications

FD40 at a Glance

Full spec sheet available for download below.
9,000 lbs
Rated Capacity
118"
Max Lift Height
Kohler — 48.2 kW
Engine
Diesel — 70L
Fuel Tank
11,245 lbs
Service Weight
25.5 mph
Max Travel Speed
106.3"
Turning Radius
20%
Gradeability

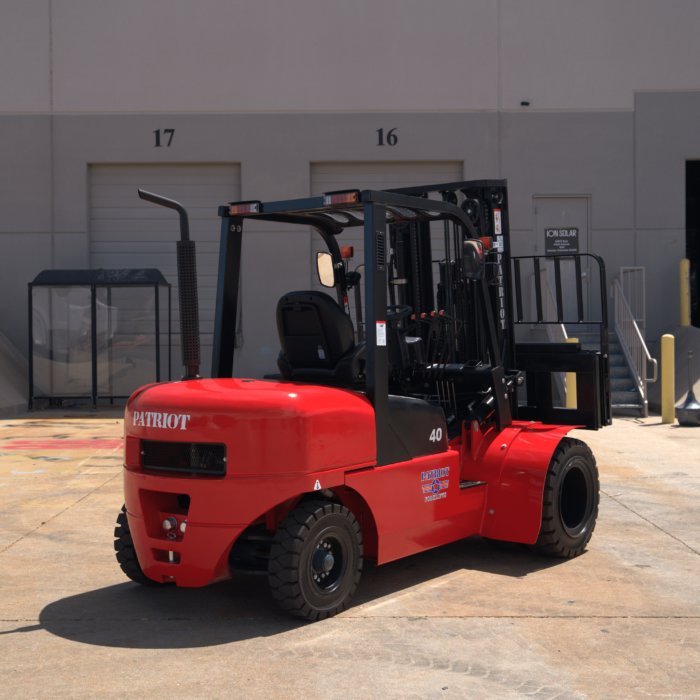

Patriot FD40 — gallery image 1

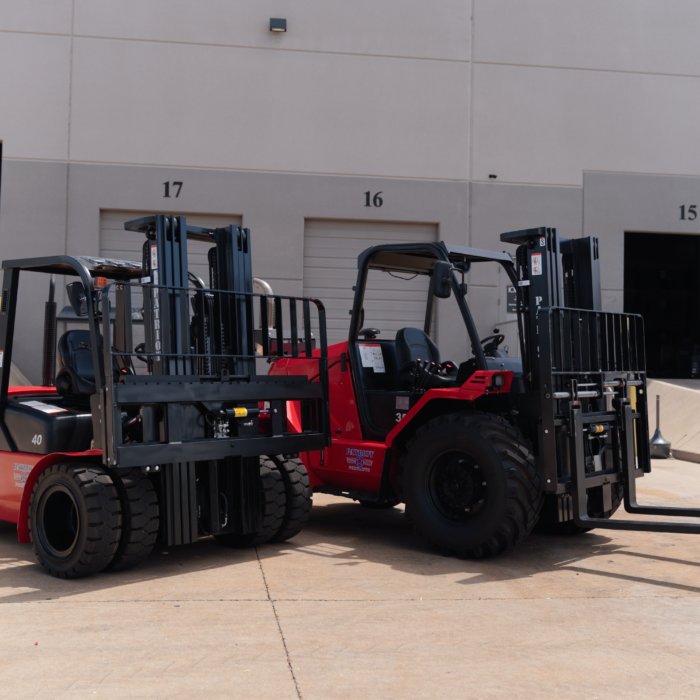

Patriot FD40 — gallery image 2

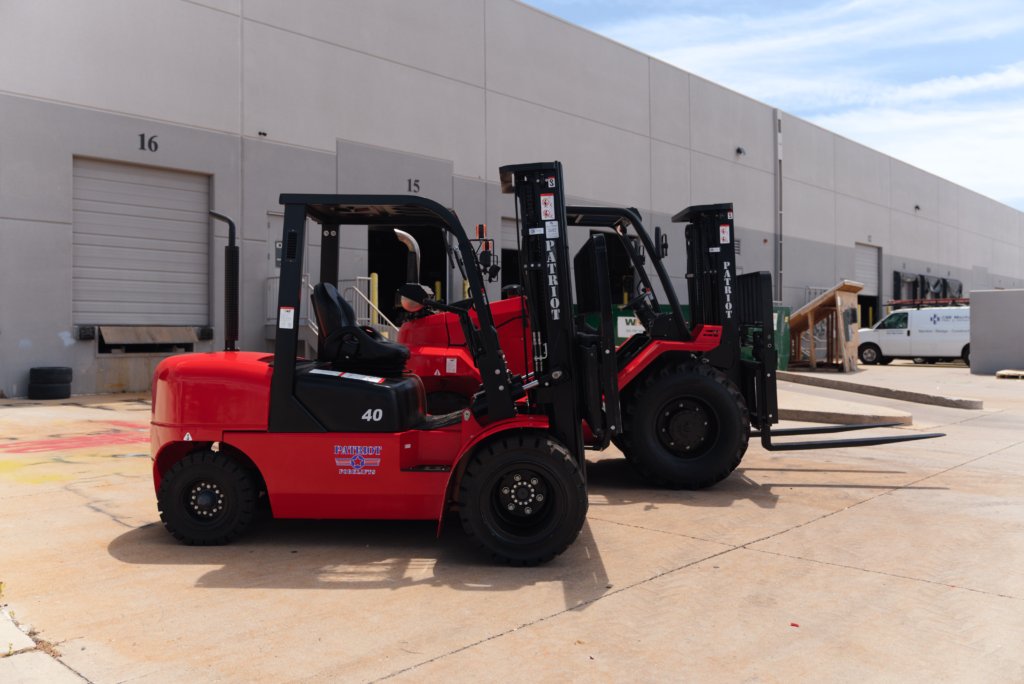

Patriot FD40 — gallery image 3

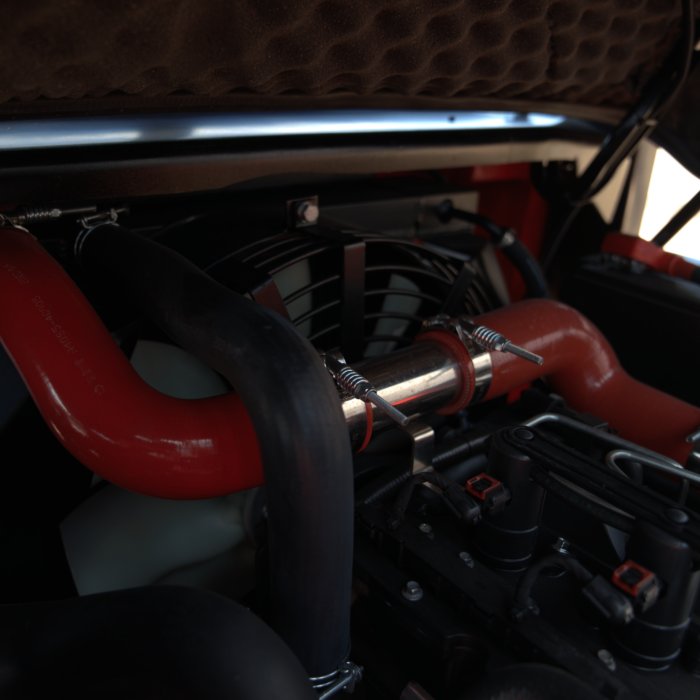

Patriot FD40 — gallery image 4

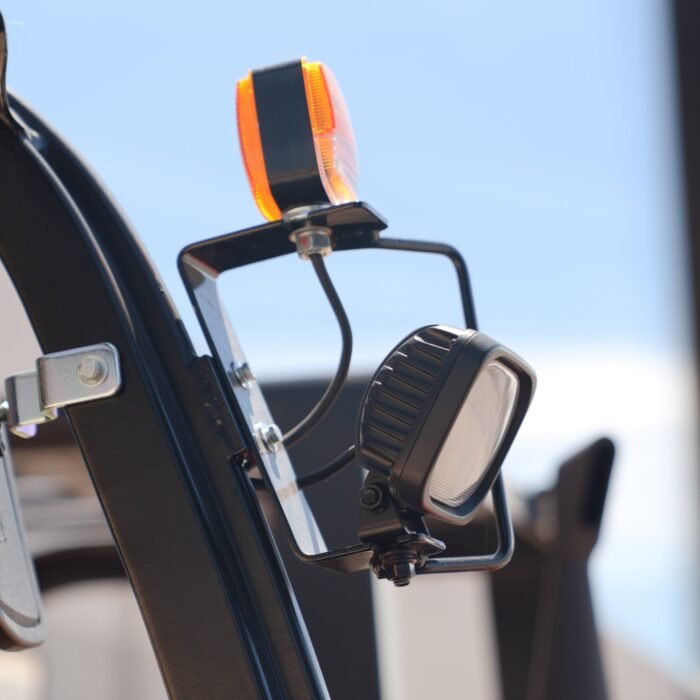

Patriot FD40 — gallery image 5
Standard Upgraded Components
Blue LED Safety Light
LED Safety Light
Blue spot warning light alerts pedestrians to forklift approach in busy work zones.
Suspension Seat
Suspension Seat
Premium integrated suspension seat reduces operator fatigue during extended shifts.
Emergency Brakes
Emergency Brakes
Heavy-duty emergency braking system for reliable stopping power in any condition.
Resources
FD40 Downloads
Download Catalog (PDF)
More Diesel

Other Diesel Lifts

Diesel Patriot FD30
FD30 6,000 lbs

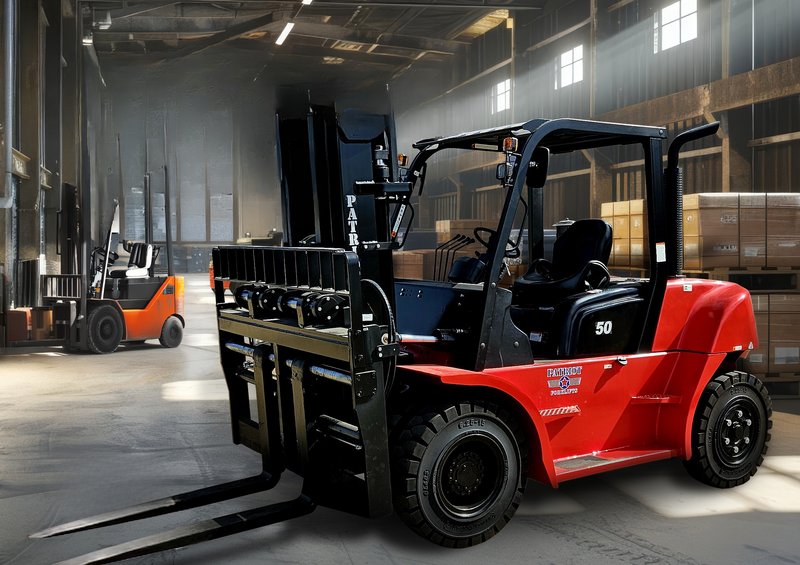

Diesel Patriot FD50
FD50 11,000 lbs
Diesel Patriot FD70
FD70 15,500 lbs
Rough Terrain Patriot FD35RT4
FD35RT4 8,000 lbs · Rough Terrain

Ready to Put the FD40 to Work?

Connect with an authorized dealer near you for pricing, a demo, or fleet solutions.

Find Your Dealer
FD40 Full Specifications
Performance
Rated Capacity9,000 lbs
Max Travel Speed25.5 mph
Max Lift Speed12.6 in/s
Gradeability20%
Engine
ModelKohler KDI1903TCR
Power Output48.2 kW @ 2,600 rpm
Max Torque320 N·m @ 1,600 rpm
Displacement2,392 cc — 4-Cylinder
Fuel TypeDiesel
Fuel Tank70 L
TransmissionHydraulic — 1F / 1R
Mast & Forks
Mast Type2-Stage
Max Lift Height118"
Lowered Height86.4"
Extended Height165"
Tilt Angle6° Forward / 12° Rear
Fork Dimensions42 × 4.9 × 2.0"
Dimensions
Overall Length114"
Overall Width55.5"
Wheelbase74.8"
Turning Radius106.3"
Min Aisle Width106.3"
Guard Height83.5"
Ground Clearance5.5"
Weight & Tires
Service Weight11,245 lbs
Front Tires250-15-16 Pneumatic (×2)
Rear Tires6.50-10-10 Pneumatic (×2)
Specifications subject to change without notice. Find a Dealer
