Models  /  FD35RT4
Rough Terrain

FD35RT4

8,000 lbs of off-road capability with 30% gradeability, 10.6 inches of ground clearance, and a 3-speed transmission — goes where warehouse lifts can't.

8,000 lbs Capacity
30% Gradeability
Kohler Engine
Find a Dealer
FD35RT4 Patriot FD35RT4 Rough Terrain Forklift
Ideal For

Where the FD35RT4 Goes to Work

Construction Sites
30% gradeability and 10.6" ground clearance.
Lumber Yards
Oversized tires handle gravel and uneven ground.
Agricultural Operations
4WD and rough-terrain tires for field work.
Outdoor Freight Handling
3-speed forward transmission for loaded hill climbs.
Specifications

FD35RT4 at a Glance

Full spec sheet available for download below.
8,000 lbs
Rated Capacity
118"
Max Lift Height
Kohler
Engine — 36 kW, 4-Cyl
Diesel
Fuel Type — 80L Tank
13,010 lbs
Service Weight
15.5 mph
Max Travel Speed
30%
Gradeability
10.6"
Ground Clearance

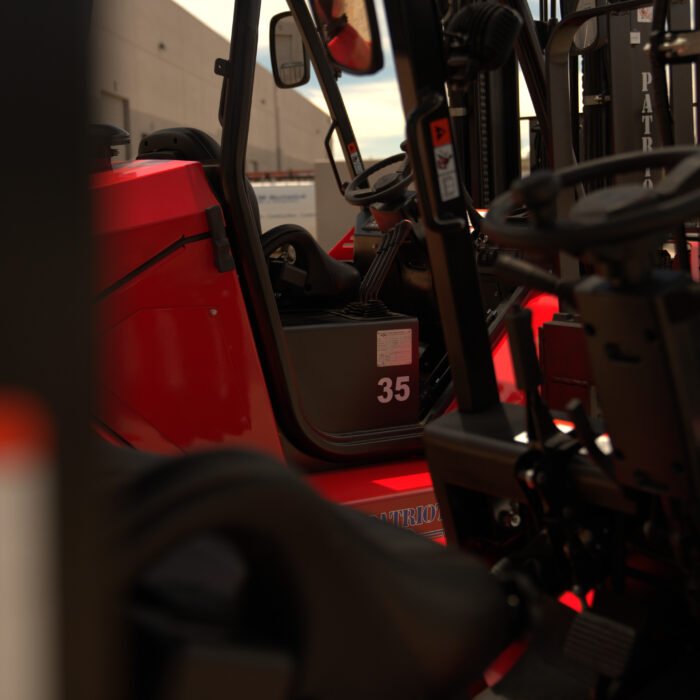

Patriot FD35RT4 — gallery image 1

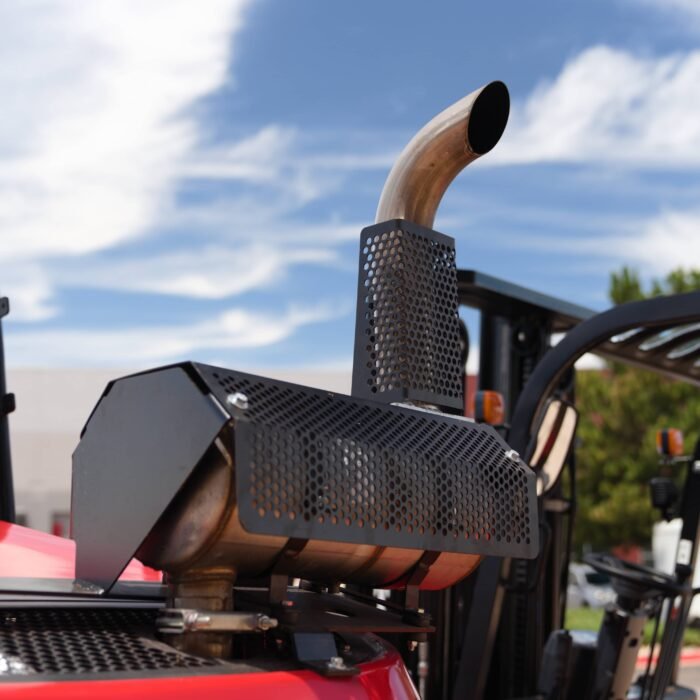

Patriot FD35RT4 — gallery image 2

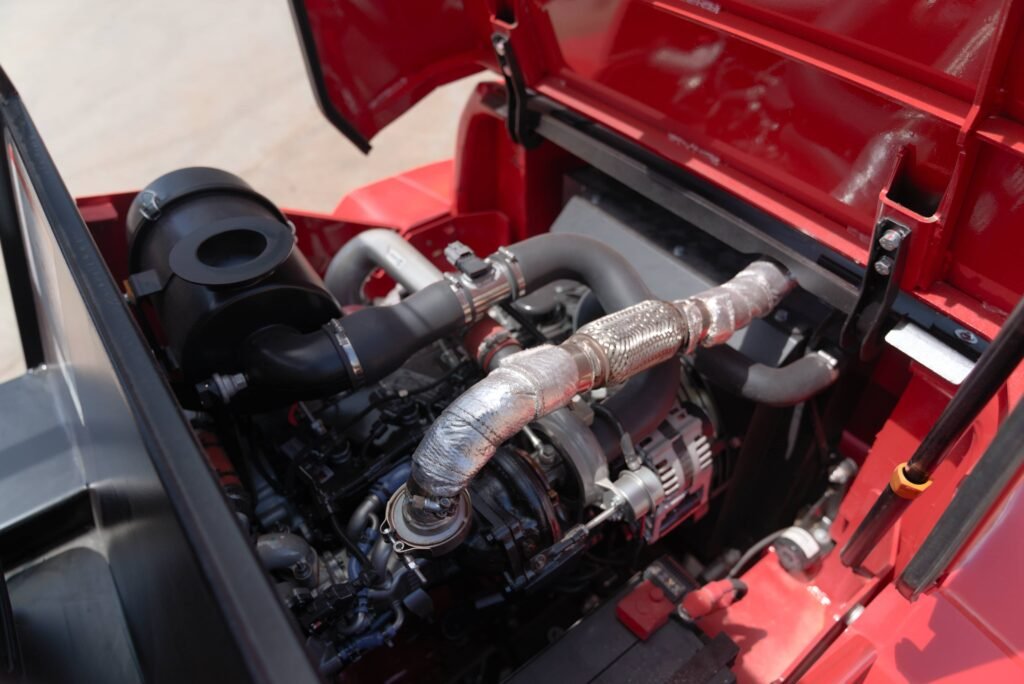

Patriot FD35RT4 — gallery image 3

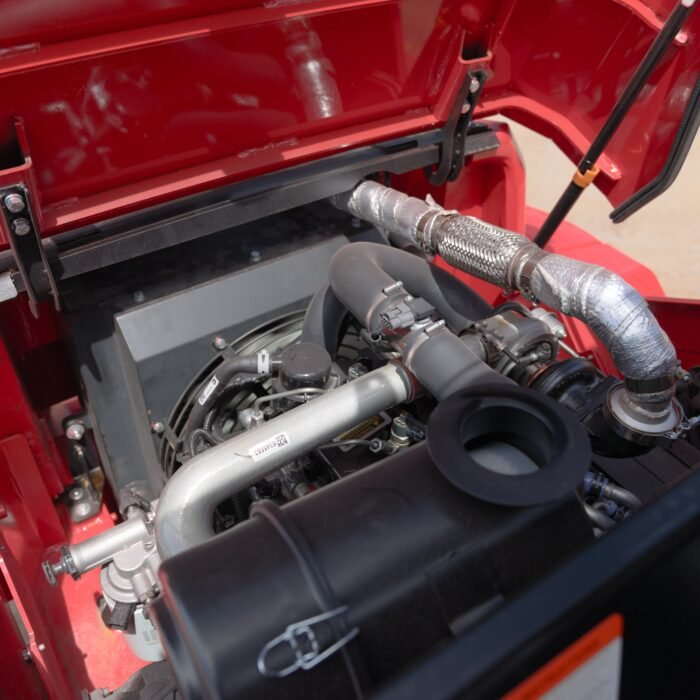

Patriot FD35RT4 — gallery image 4

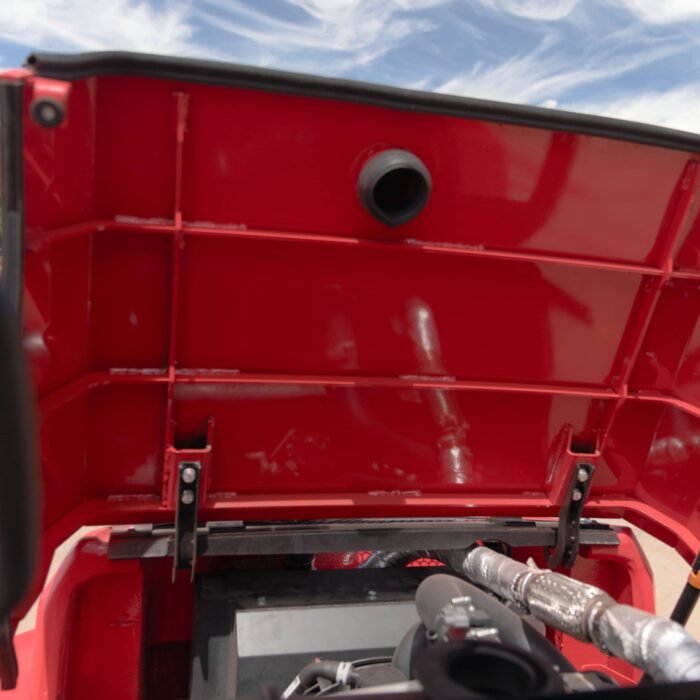

Patriot FD35RT4 — gallery image 5

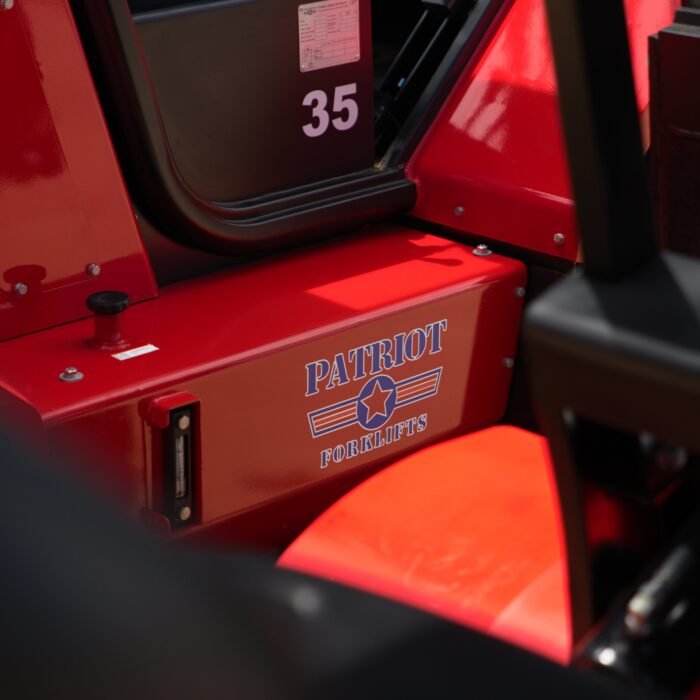

Patriot FD35RT4 — gallery image 6
Standard Upgraded Components
Blue LED Safety Light
LED Safety Light
Blue spot warning light alerts pedestrians to forklift approach in busy work zones.
Suspension Seat
Suspension Seat
Premium integrated suspension seat reduces operator fatigue during extended shifts.
Emergency Brakes
Emergency Brakes
Heavy-duty emergency braking system for reliable stopping power in any condition.
Resources
FD35RT4 Downloads
Download Catalog (PDF)
More Diesel

Other Diesel Lifts

Diesel Patriot FD30
FD30 6,000 lbs
Diesel Patriot FD40
FD40 9,000 lbs
Diesel Patriot FD50
FD50 11,000 lbs
Diesel Patriot FD70
FD70 15,500 lbs

Ready to Put the FD35RT4 to Work?

Connect with an authorized dealer near you for pricing, a demo, or fleet solutions.

Find Your Dealer
FD35RT4 Full Specifications
Performance
Rated Capacity8,000 lbs
Max Travel Speed15.5 mph
Max Lift Speed18.9 in/s
Gradeability30%
Engine
ModelKohler KDI 1903
Power Output36 kW @ 2,500 rpm
Max Torque186 N·m @ 1,100-1,500 rpm
Displacement1,952 cc — 4-Cylinder
Fuel TypeDiesel
Fuel Tank80 L
TransmissionHydraulic — 3F / 2R
Mast & Forks
Mast Type2-Stage
Max Lift Height118"
Lowered Height89"
Extended Height167.7"
Tilt Angle10° Forward / 12° Rear
Fork Dimensions48 × 4.9 × 2.0"
Dimensions
Overall Length128"
Overall Width72.2"
Wheelbase78.3"
Turning Radius172.4"
Min Aisle Width119.7"
Guard Height88.6"
Ground Clearance10.6"
Weight & Tires
Service Weight13,010 lbs
Front Tires405/70-20-14 Air Pneumatic (×2)
Rear Tires10.0/75-15.3-12 Air Pneumatic (×2)
Specifications subject to change without notice. Find a Dealer
