Models  /  G25
Propane

G25

5,000 lbs of Kubota propane power with a 187-inch triple-stage mast — the versatile indoor/outdoor lift that starts under $20K.

5,000 lbs Capacity
187" Lift Height
Kubota Engine
Find a Dealer
G25 Patriot G25 Propane Forklift
Ideal For

Where the G25 Goes to Work

Mixed Indoor/Outdoor
Propane runs clean enough for ventilated interiors.
General Warehousing
5,000 lbs and 187" lift covers most rack heights.
Beverage Distribution
Compact with fast 20.8 in/s lift speed.
Small Fleet Operations
Lowest starting price in the lineup at $19,989.
Specifications

G25 at a Glance

Full spec sheet available for download below.
5,000 lbs
Rated Capacity
187"
Max Lift Height
Kubota
Engine — 56 Hp, 4-Cyl
Propane
Fuel — 15.85 Gal
8,159 lbs
Service Weight
11.8 mph
Max Travel Speed
88.2"
Turning Radius
20%
Gradeability

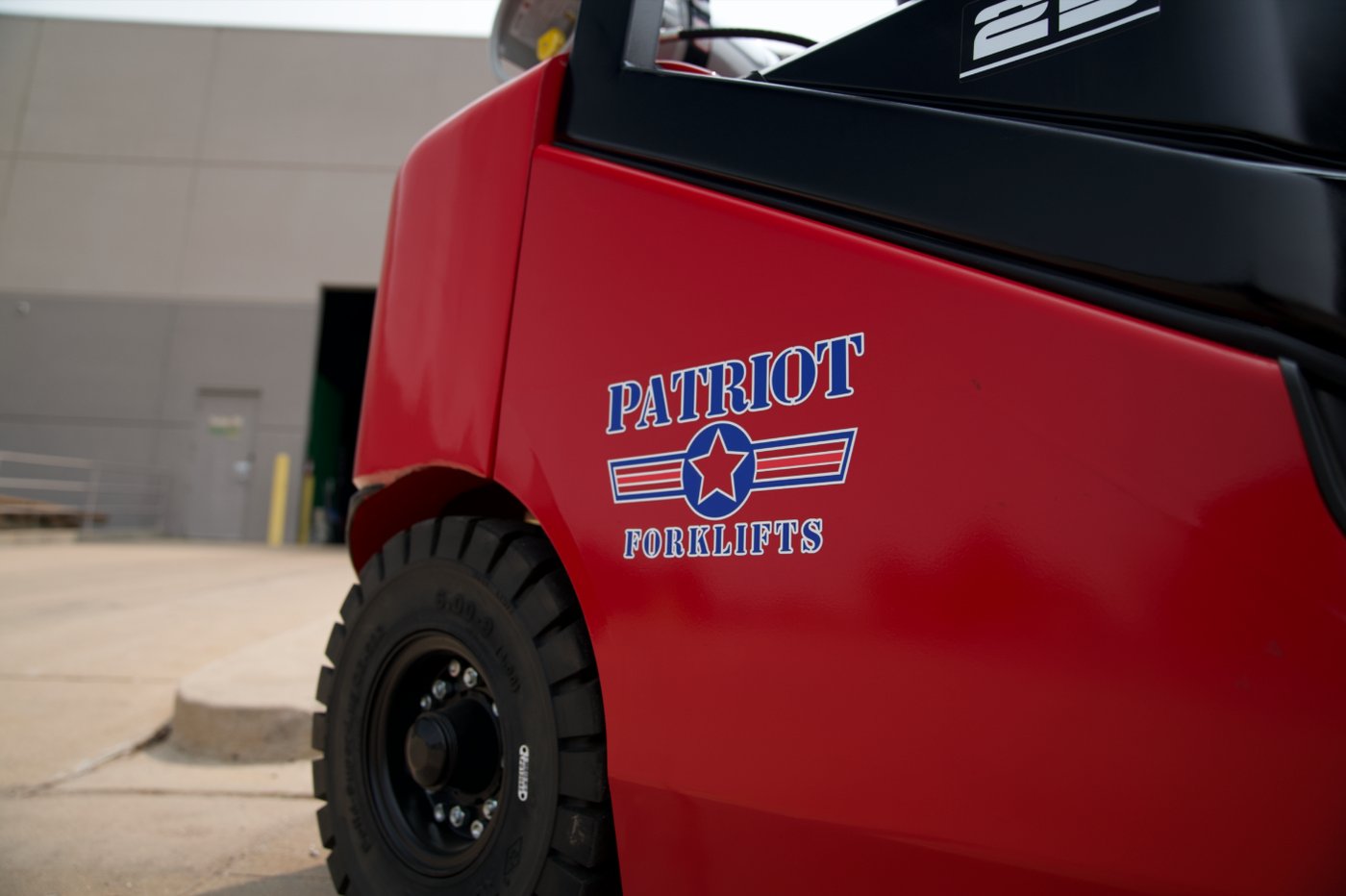

Patriot G25 — gallery image 1

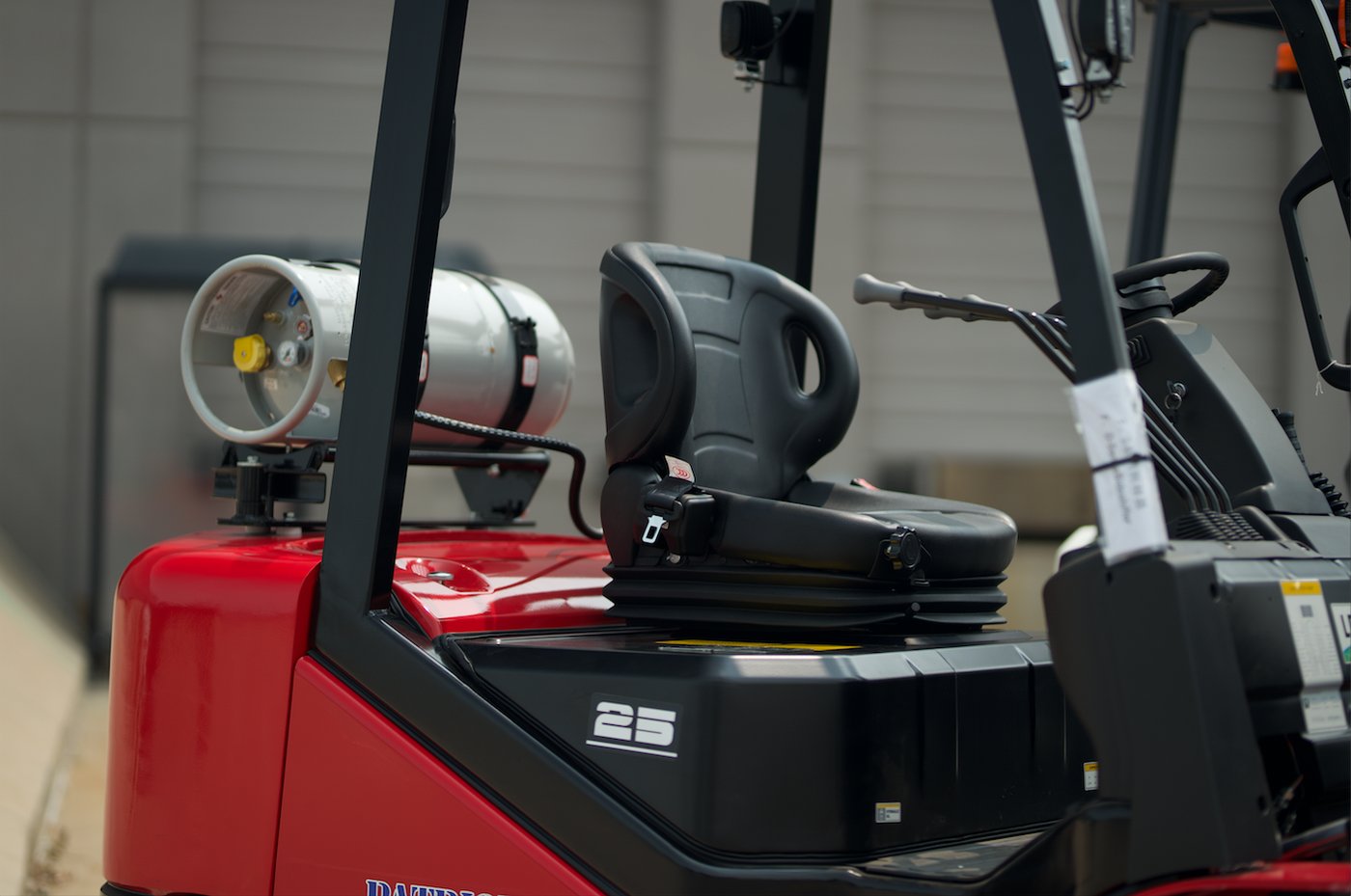

Patriot G25 — gallery image 2

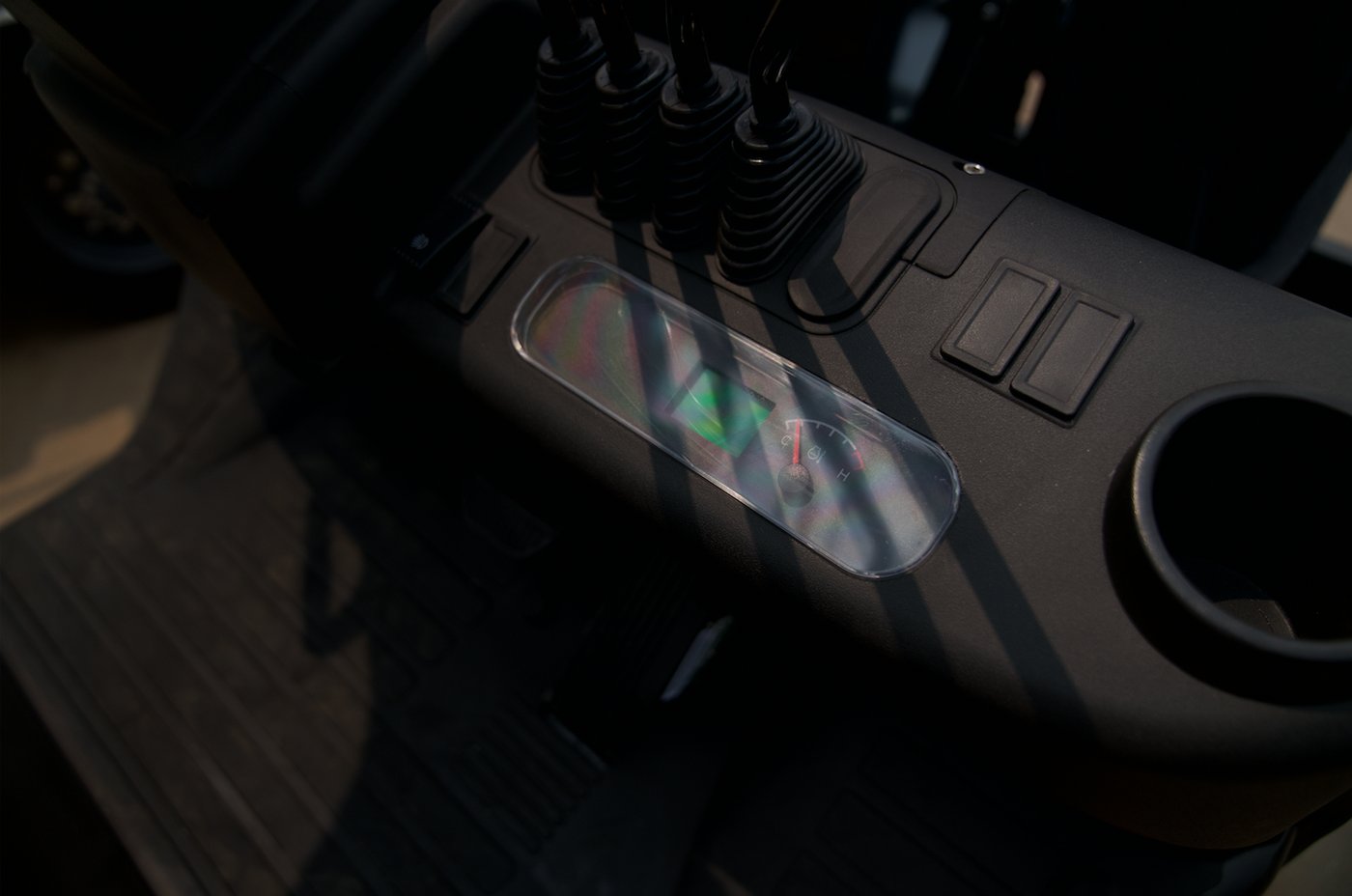

Patriot G25 — gallery image 3

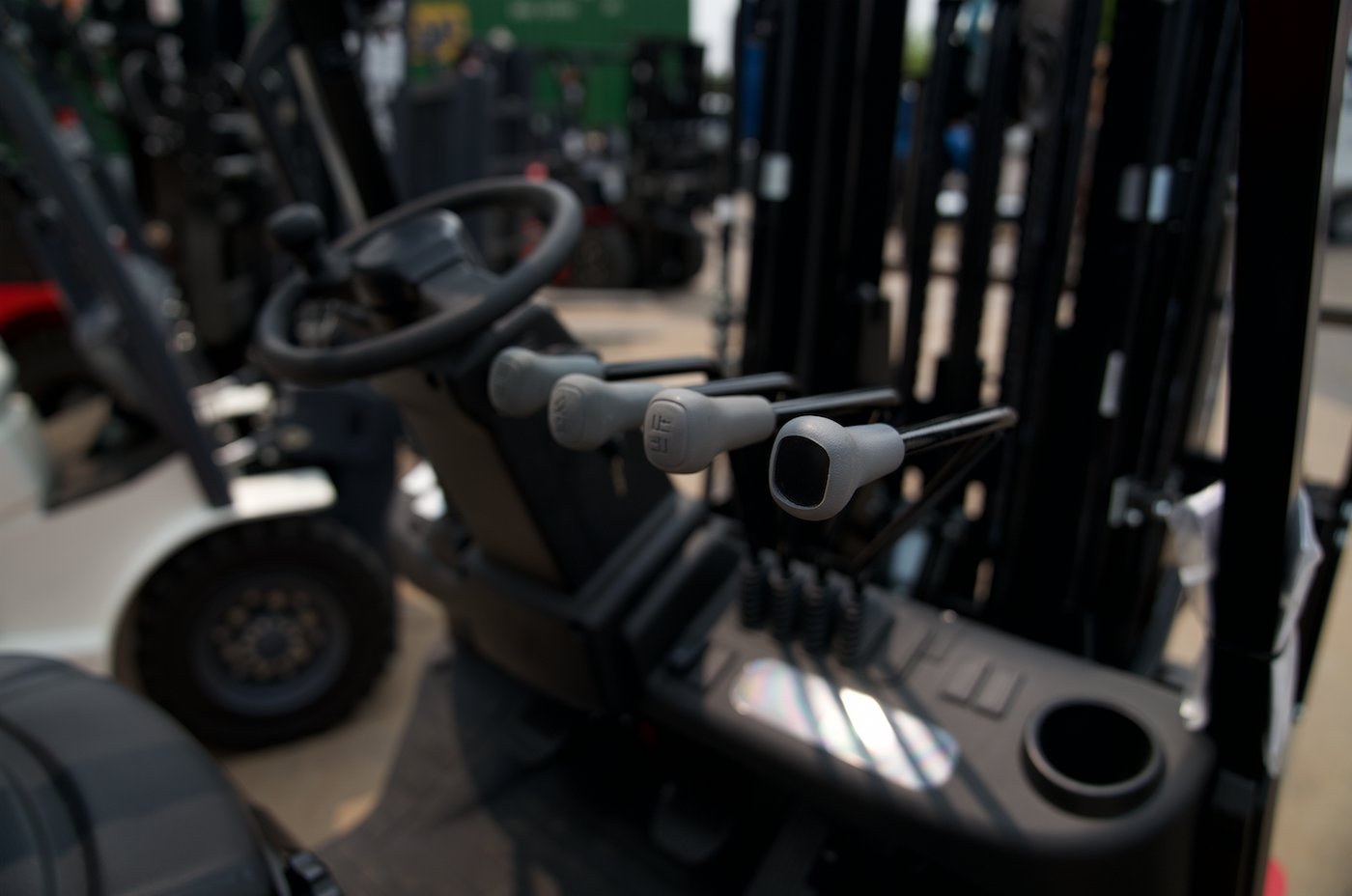

Patriot G25 — gallery image 4

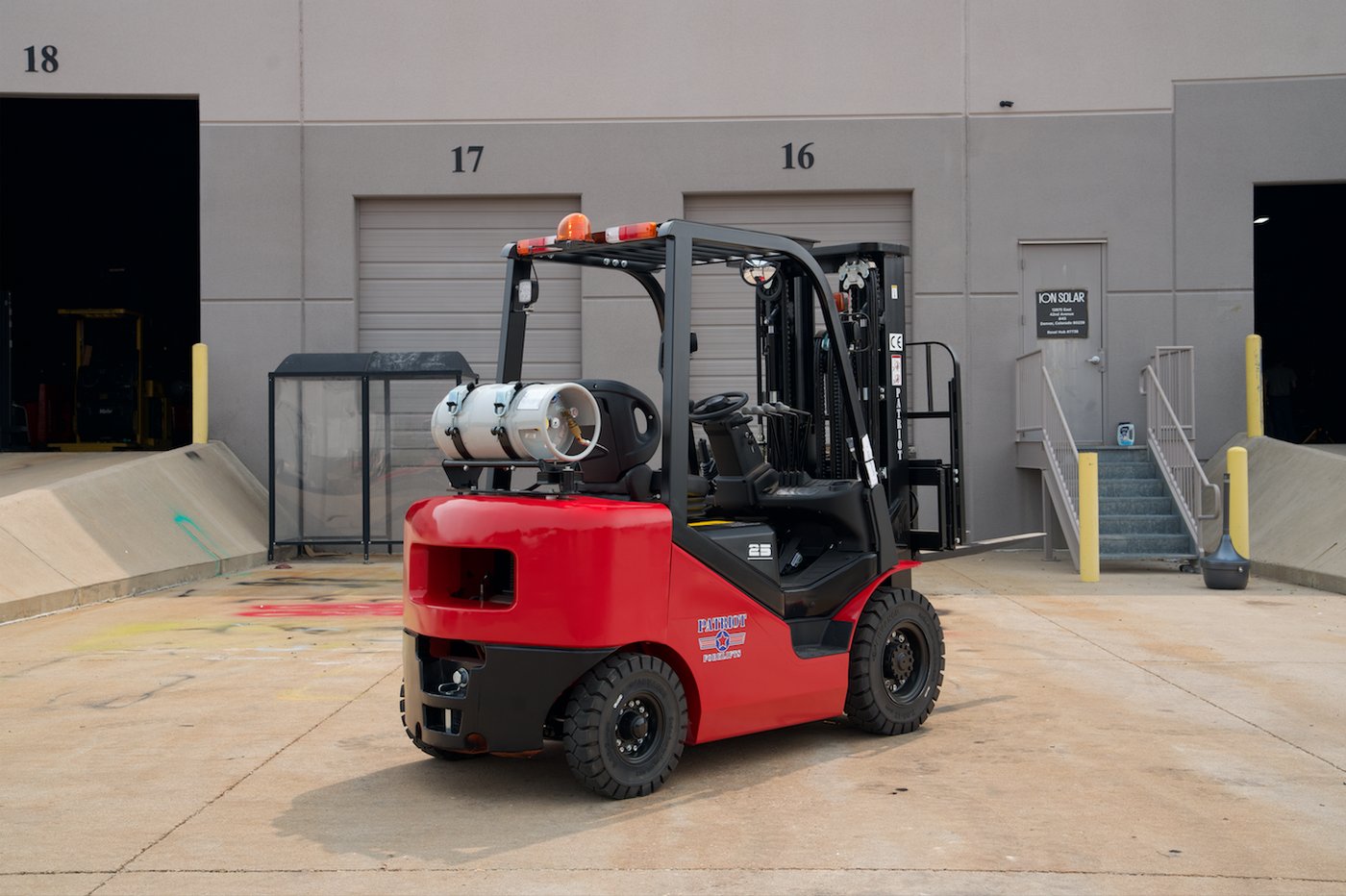

Patriot G25 — gallery image 5

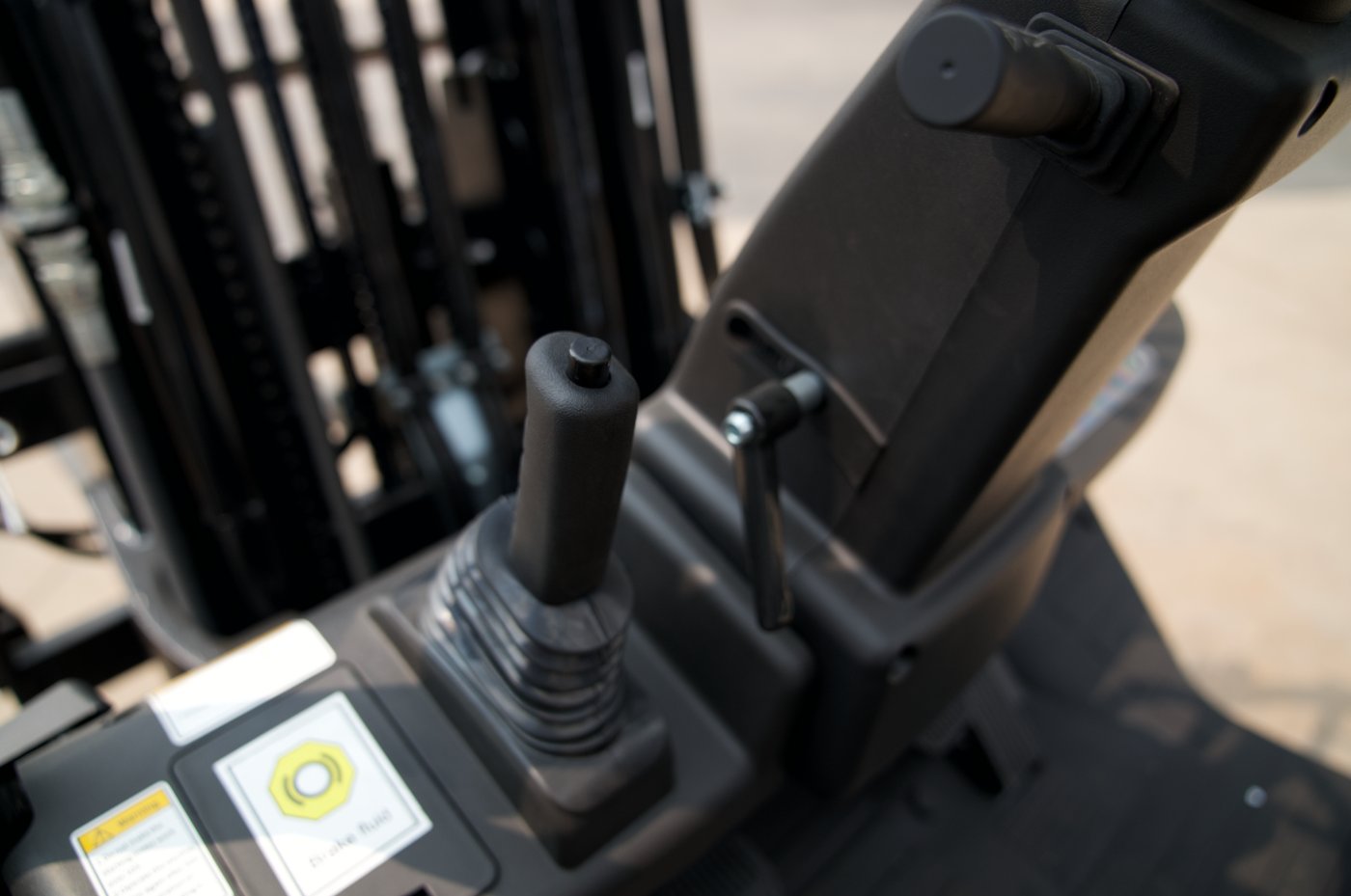

Patriot G25 — gallery image 6

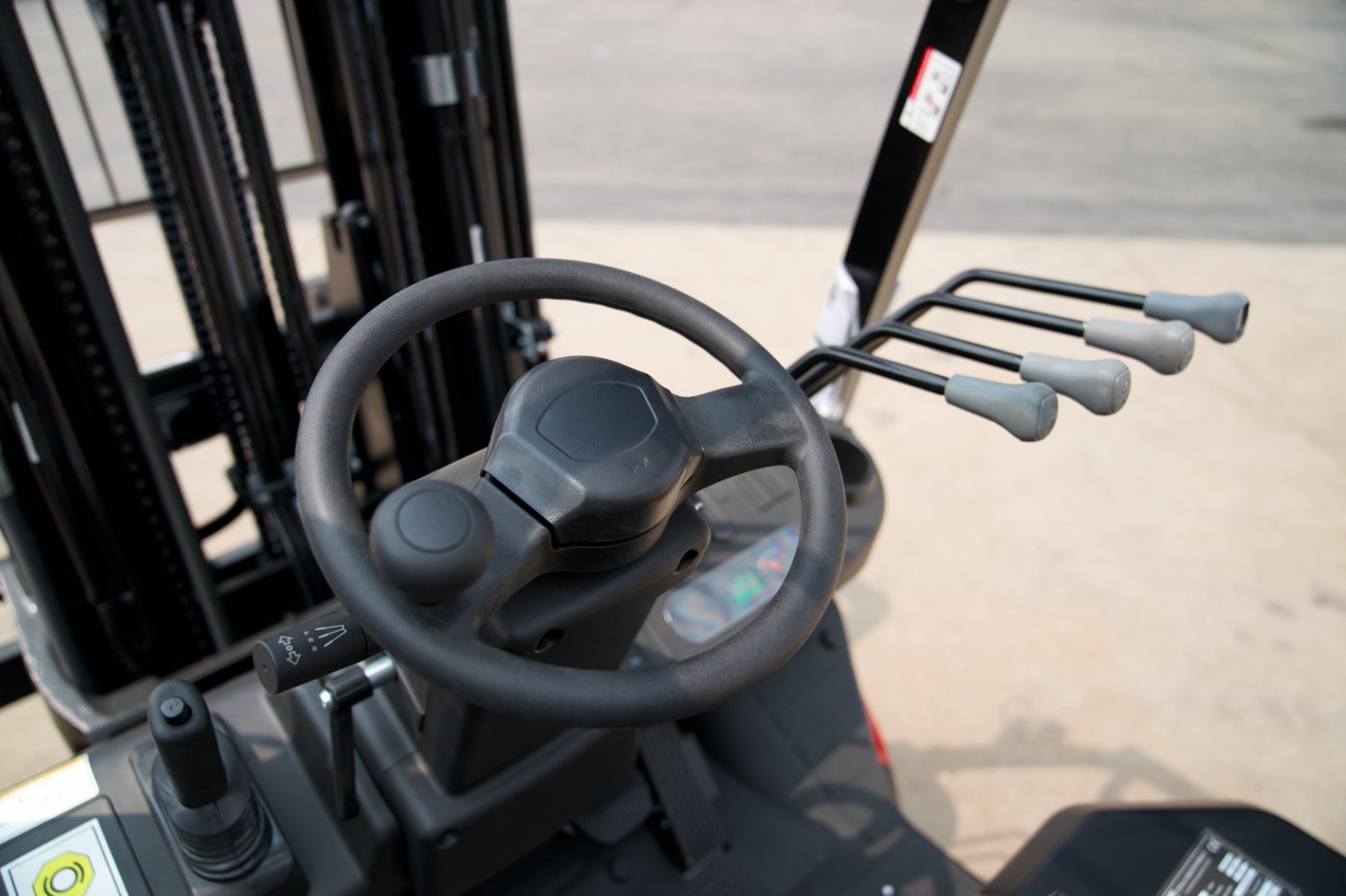

Patriot G25 — gallery image 7
Standard Upgraded Components
Blue LED Safety Light
LED Safety Light
Blue spot warning light alerts pedestrians to forklift approach in busy work zones.
Suspension Seat
Suspension Seat
Premium integrated suspension seat reduces operator fatigue during extended shifts.
Emergency Brakes
Emergency Brakes
Heavy-duty emergency braking system for reliable stopping power in any condition.
Resources
G25 Downloads
Download Catalog (PDF)
More Propane

Other Propane Lifts

Propane Patriot G35
G35 8,000 lbs

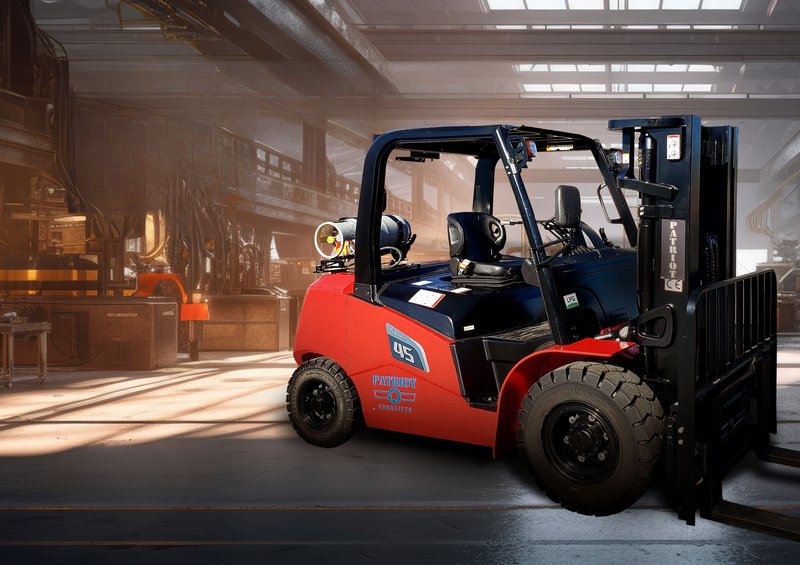

Dual Fuel Patriot G45
G45 10,000 lbs

Ready to Put the G25 to Work?

Connect with an authorized dealer near you for pricing, a demo, or fleet solutions.

Find Your Dealer
G25 Full Specifications
Performance
Rated Capacity5,000 lbs
Max Travel Speed11.8 mph
Max Lift Speed20.8 in/s
Gradeability20%
Engine
ModelPSI/Kubota WG2503-L
Power Output56 Hp @ 2,700 rpm
Max Torque185 N·m @ 1,350 rpm
Displacement2,448 cc — 4-Cylinder
Fuel TypePropane / LPG
Fuel SystemUSA Impco Converter
Tank Capacity15.85 Gallons
TransmissionHydraulic — 1F / 1R (TCM Technology)
Mast & Forks
Mast Type3-Stage
Max Lift Height187"
Lowered Height81"
Extended Height158.6"
Tilt Angle6° Forward / 12° Rear
Fork Dimensions42 × 4.8 × 1.57"
Dimensions
Overall Length94"
Overall Width45.3"
Wheelbase63"
Turning Radius88.2"
Min Aisle Width89.8"
Guard Height84.6"
Ground Clearance5"
Weight & Tires
Service Weight8,159 lbs
Front Tires7.00-12-12 Pneumatic (×2)
Rear Tires6.00-9-10 Pneumatic (×2)
PaintUSA DuPont Automotive
Specifications subject to change without notice. Find a Dealer
